| Số lượng đặt hàng tối thiểu: | 500 PC |
|---|---|
| Giá bán: | 0.1-15$ |
| chi tiết đóng gói: | Túi nhựa+thùng carton |
| Thời gian giao hàng: | 15-20 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10000 PC |
| Vật liệu: | Lá nhôm/PET/LƯU Ý/Kính len/Lưới dây | Ứng dụng: | Thông gió |
|---|---|---|---|
| Hình dạng: | hình tròn | Phạm vi nhiệt độ: | -30 - +250 độ Celsius |
| Phạm vi đường kính: | 80mm - 610mm | Màu sắc: | Bạc |
| Chiều dài đứng: | 5-10m | Vận tốc của luồng không khí (tối đa): | 30 M/giây |
| Làm nổi bật: | sound-reducing HVAC duct,acoustic insulated air ducting,flexible HVAC duct insulation |
||

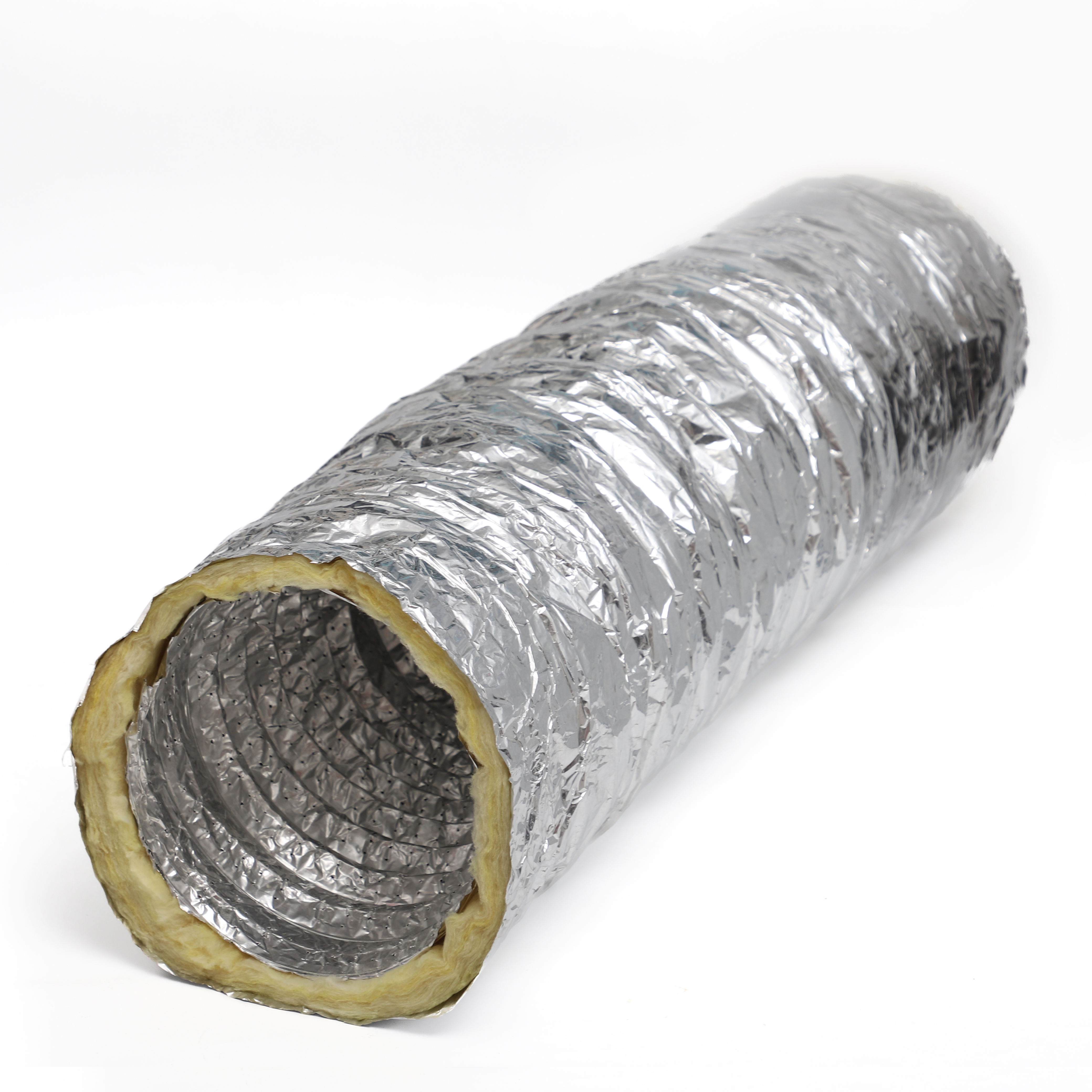

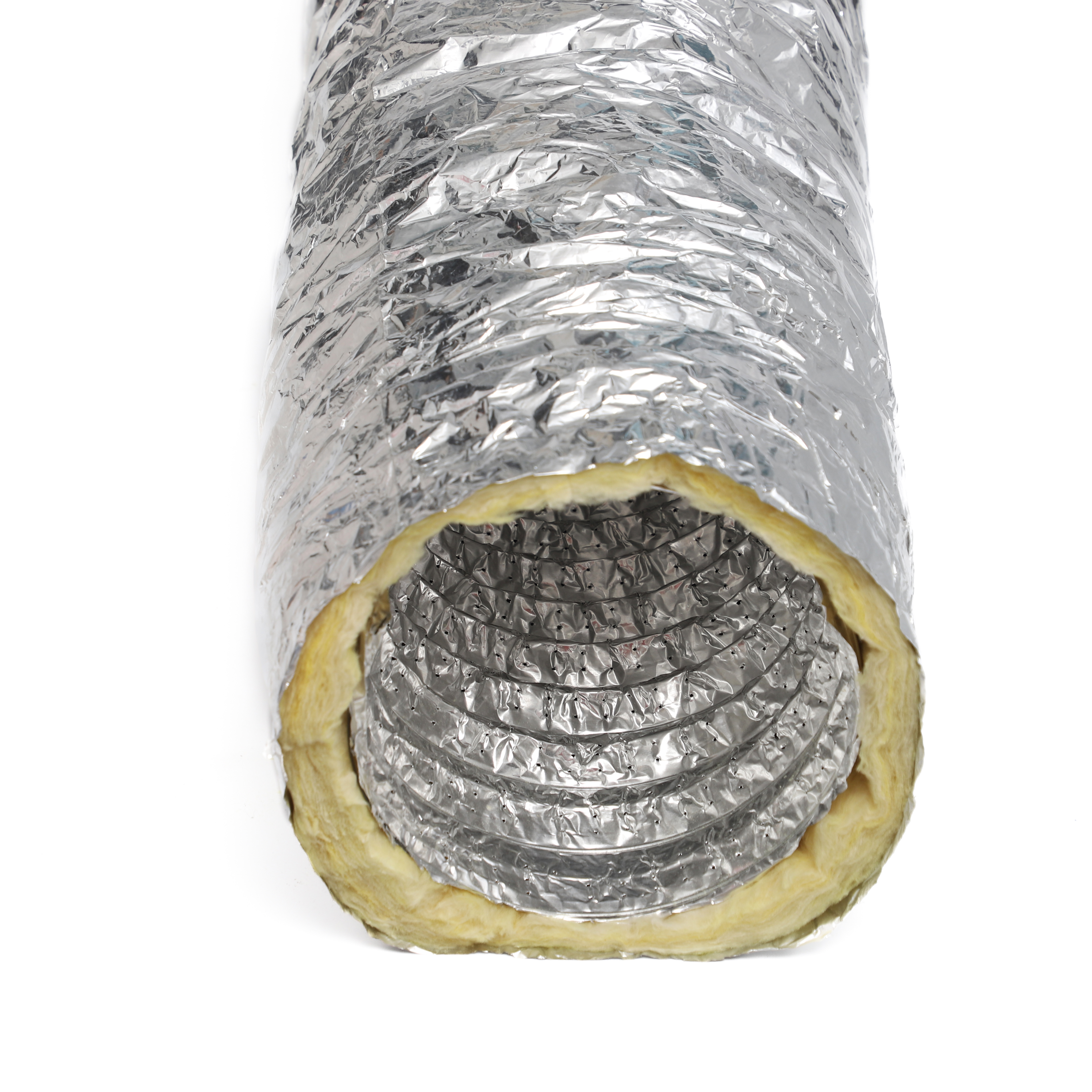

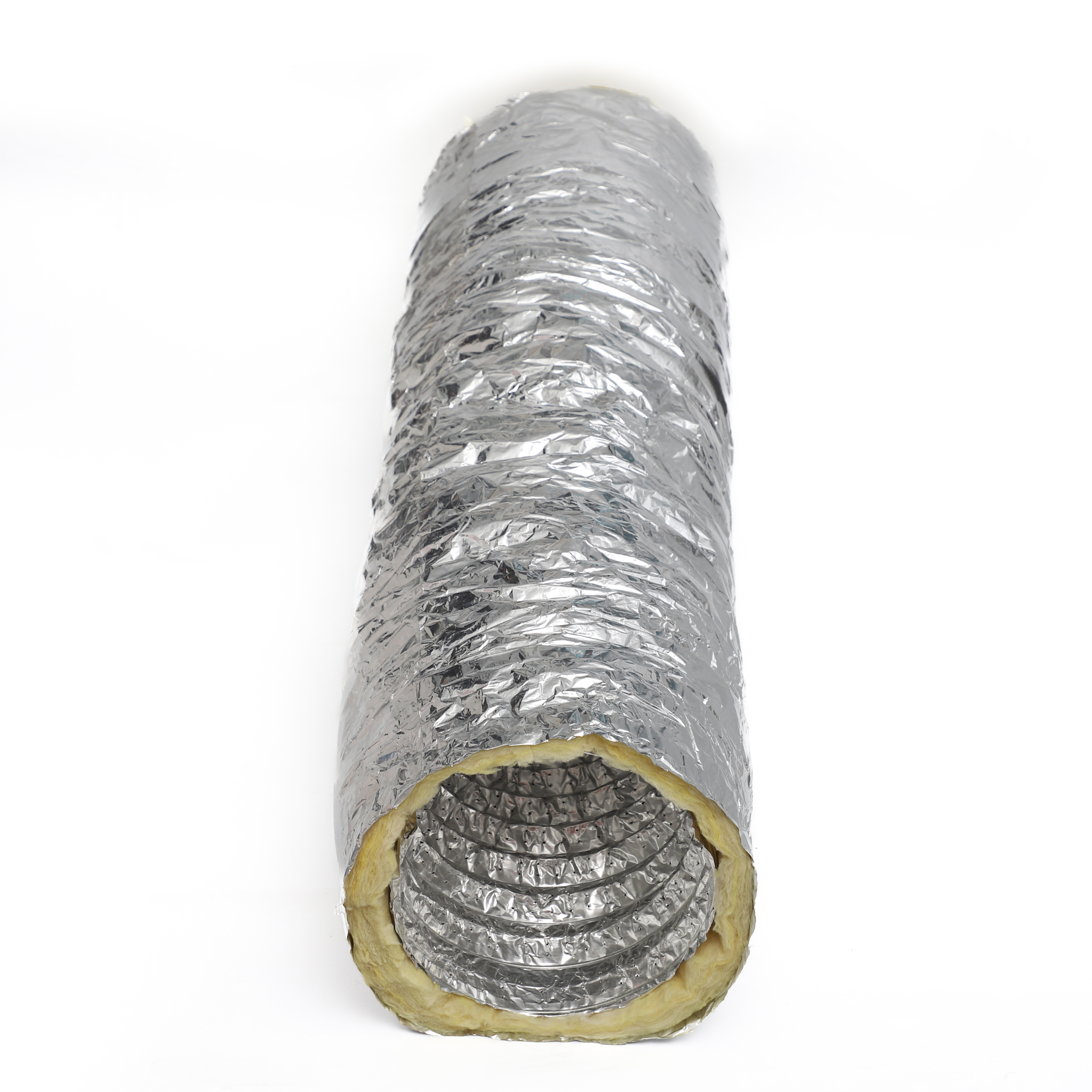

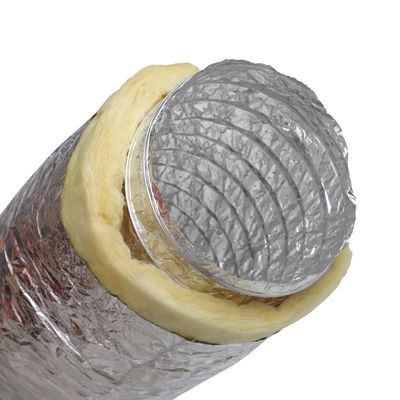

Factory Air conditioning air duct HAVC system insulated duct
|
PROPERTIES |
VALUE |
|
DIAMETER RANGE |
80 ~ 610mm (3"~ 24") |
|
TEMPERATURE RANGE |
-30 ~ +250 °C |
|
VELOCITY OF AIR FLOW (MAX.) |
30 m/s |
|
WORKING PRESSURE |
2500 Pa/3000 Pa |
|
BENDING RADIUS |
0.54*D+25mm |
|
THICKNESS OF FIBERGLASS INSULATION |
25-50mm |
|
DENSITY OF FIBERGLASS INSULATION |
16~32kg/m3 |
|
STANDARD LENGTH |
5 ~ 10m |
Features:

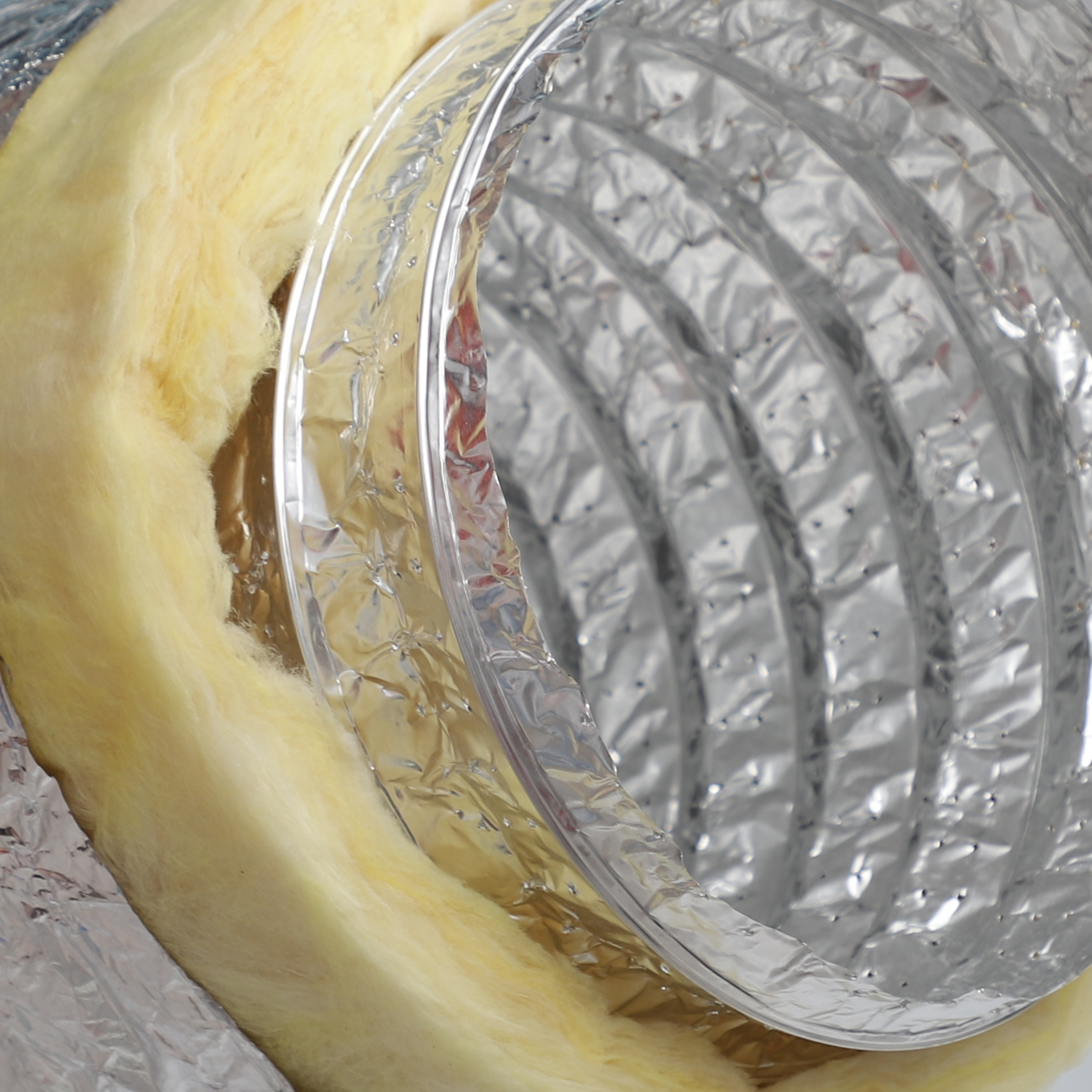

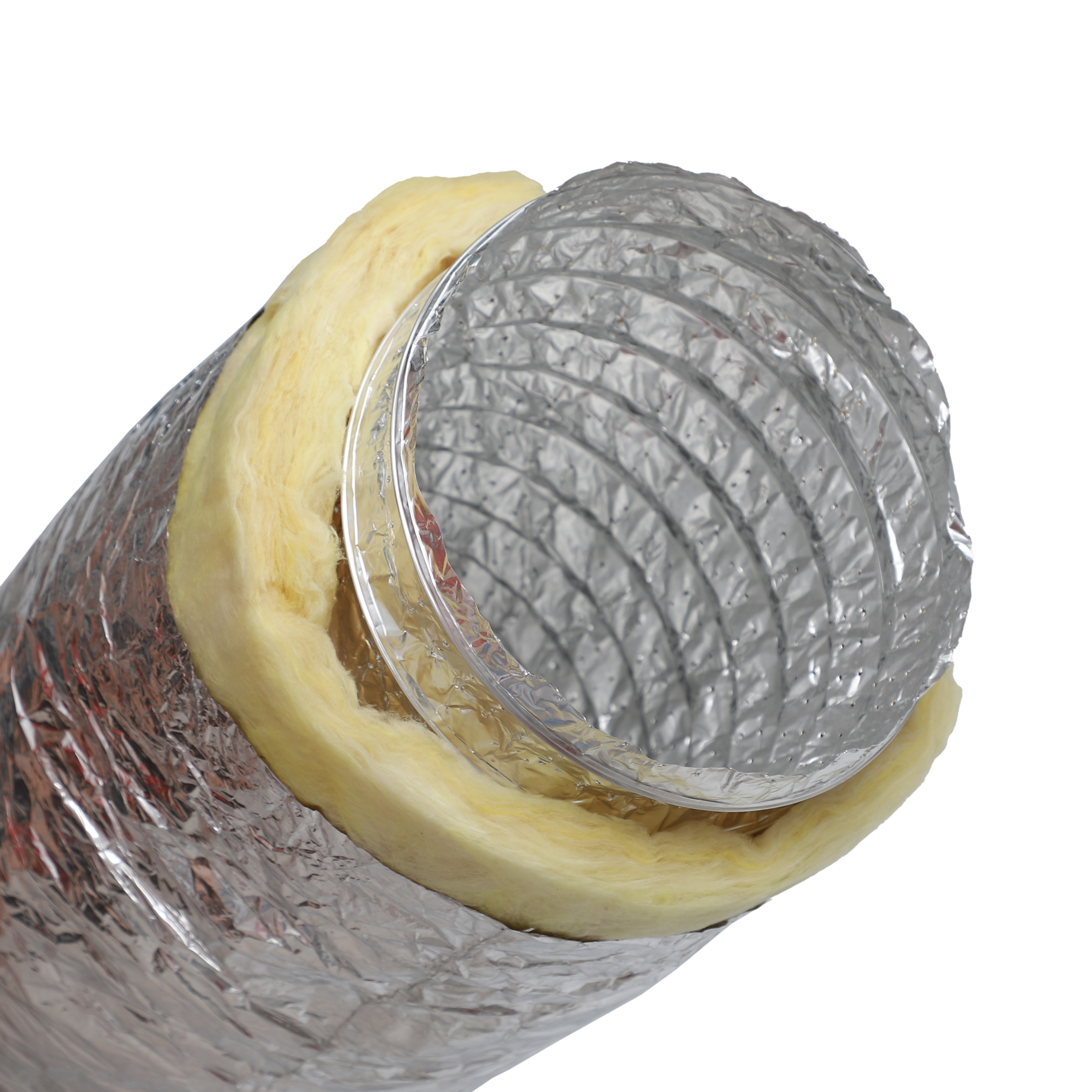

Multi-Layer Construction: Composed of a slightly perforated inner core, encapsulated by fiberglass insulation, and finished with a durable aluminum/polyester laminated outer jacket.
Superior Performance: Combines excellent fire resistance and acoustic damping with outstanding thermal insulation and high flexibility.
Efficiency & Protection: Effectively minimizes heat and cool loss while preventing condensation formation within HVAC systems.
Packing:
If you are interested in our products, please { click here } to see all the products
Q: Can you serve free samples and how can I get them?
A: Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your test
Q: Can this be used for a range hood exhaust?"
A: Suitable for use with heating, ventilation and air conditioning systems.
Q: Can the duct be cut to length as needed?
A: Yes, sure.
Q: Where can the duct be used for?
A: Including heating and A/C systems and some venting.
Q: What are the benefits of your flexible ducts?
A: Made of high quality aluminum which is flame retardant, they are flexible and easy installation.
Q: Are you a manufacturer?
A: Yes, we are a professional manufacturer, and we cooperation with distributors at home and abroad, we have several years manufacturing and overseas sales experience.
