| Place of Origin: | China |
|---|---|
| Hàng hiệu: | fanryn |
| Chứng nhận: | GB/T 17794-2008 |
| Model Number: | glasswool |
| Minimum Order Quantity: | 1*40HQ |
| Giá bán: | 1-10$ |
| Packaging Details: | vacuum bag+woven bag |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T |
| Supply Ability: | We can finish the production of 1*40HQ in about 7-10 days |
| Tỉ trọng: | 10-48kg/m3 | Kiểu: | Các vật liệu cách nhiệt nhiệt khác, chăn, len thủy tinh |
|---|---|---|---|
| Màu sắc: | Nó thường là màu vàng, nhưng các màu khác cũng có thể được tùy chỉnh | Độ dày: | 25 mm-200mm |
| Chiều dài: | 5-30m | Ứng dụng: | Khoang đào tạo |
| Vật liệu: | thủy tinh | Chiều rộng: | 0,6-1.2m |
| Tên sản phẩm: | Bức tường chất lượng cao hoặc mái nhà cách nhiệt bằng cách nhiệt thủy tinh bằng len thủy tinh | Cấp độ dễ cháy: | Lớp A1 không cháy, không thể cháy được |
| Tính năng: | Không có máu, không thấm nước, cách nhiệt, bằng chứng ẩm, cách điện/chống cháy/hấp thụ âm thanh | Độ dẫn nhiệt: | 0,031-0.042W/mk |
| Bưu kiện: | túi nhựa chân không+túi dệt | Chức năng: | Chứng minh nước, bảo quản nhiệt |
| Kích cỡ: | 1200*600*50mm, 1200*600*100mm (47.2*23.7*3.94 in) | Tính kỵ nước: | ≥98,2% |
| Làm nổi bật: | wall thermal insulation glass wool,roof insulation glass wool blanket,thermal insulation mineral wool blanket |
||

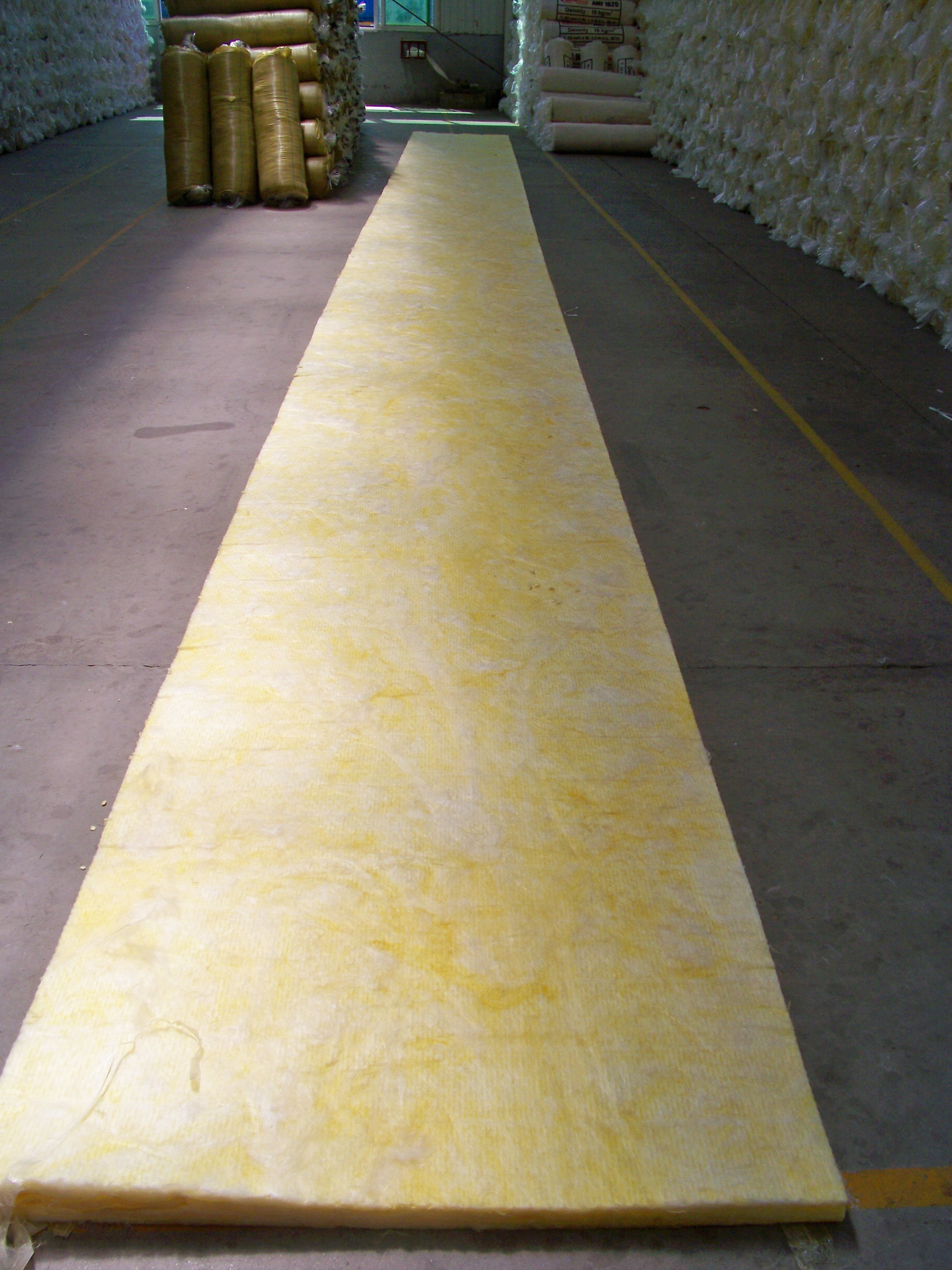

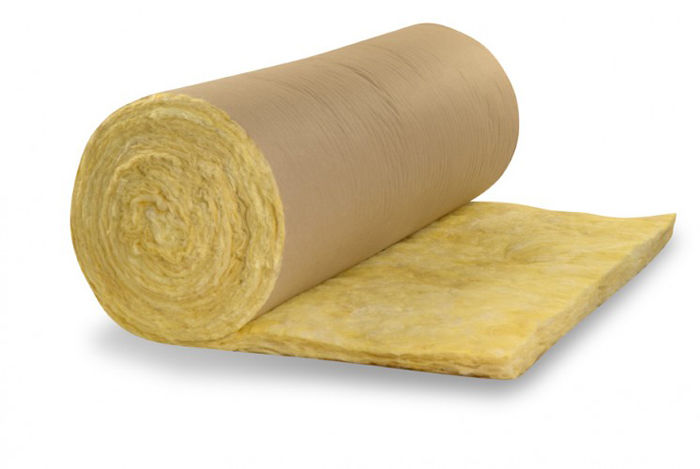

Product Introduction Of The Glass Wool Blanket Insulation
FANRYN centrifugal glass wool blanket Insulation are made for large laying area. Beside the character of thermal insulation, it also has the performances of shock absorption and acoustical isolation,especially for middle or low frequency sound, which can cancel the noise and improve working environment.
Product Parameter Of The Glass Wool Blanket Insulation
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-48 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤ 1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Preshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m·k |
0.031-0.042 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥ 98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤ 5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m3 2000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤ 0.3 |
|
Product Size Of The Glass Wool Blanket Insulation
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Product Feature And Application Of The Glass Wool Blanket Insulation
1.Wall Insulation – Enhances thermal efficiency in residential and commercial buildings, reducing heating/cooling costs.
2.Steel Structure Insulation – Provides effective thermal protection for warehouses, factories, and prefabricated buildings.
3.Indoor Partition Walls – Improves soundproofing between rooms in offices, hotels, and apartments.
4.Train & Vehicle Compartments – Ensures temperature stability and noise reduction in railway carriages, buses, and RVs.
5.Acoustic Panels & Ceilings – Used in theaters, studios, and industrial facilities for superior noise control.
6.HVAC & Duct Insulation – Prevents heat loss and condensation in ventilation system
Production Details Of The Glass Wool Blanket Insulation
Product Packing Of The Glass Wool Blanket Insulation

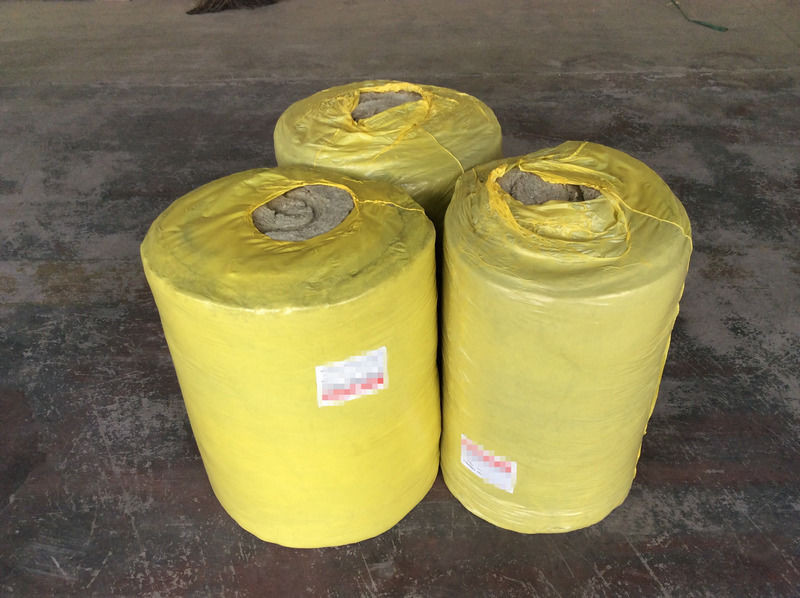

1.Vacuum plastic bag+woven bag
2.Vacuum plastic bag+PE bag
3.Vacuum plastic bag+PE shrinking bag
4.PE shrinking bag

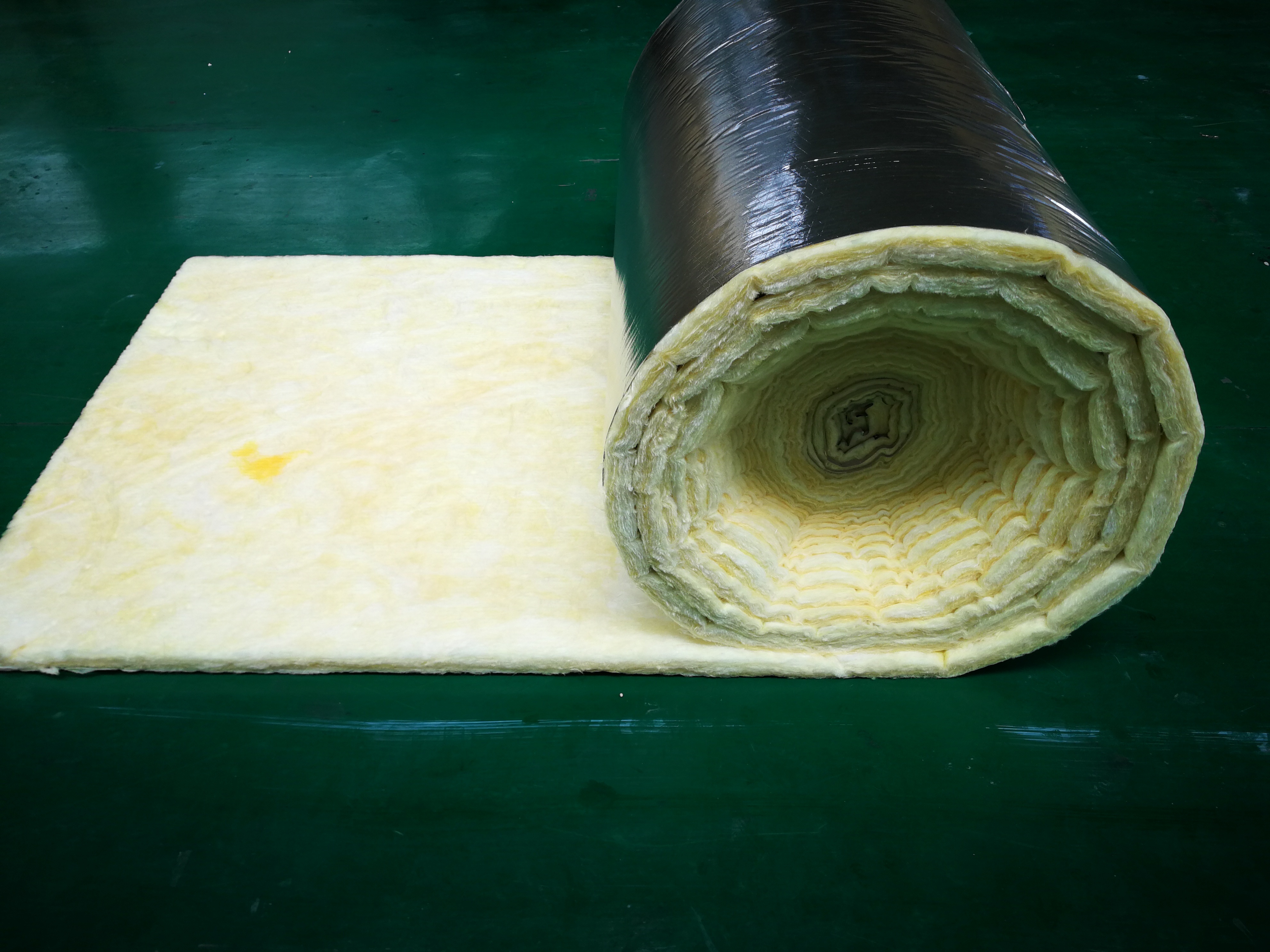

Production Facing Of The Glass Wool Blanket Insulation
1.Foil-Scrim-Kraft Facing
2.Alum Glass Cloth Facing
3.Fiberglass Tissue
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Vacuum plastic bag + woven bag(Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
