| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 15 |
| Điều khoản thanh toán: | T/t |
| Vật liệu: | Len khoáng | Độ dày: | 25 mm-200mm |
|---|---|---|---|
| Phạm vi nhiệt độ: | -50°C đến 650°C | Hấp thụ âm thanh: | 0,9-1.0 NRC |
| Độ dẫn nhiệt: | 0,035-0.040 w/mk | Bền vững môi trường: | Có thể tái chế, không ODP và GWP |
| Màu sắc: | màu vàng | Loại cách nhiệt: | Cách nhiệt nhiệt |
| Kháng độ ẩm: | Thuốc chống nước | Kích thước: | 1200mm X 600mm |
| Chứng nhận: | CE, ISO, ASTM | Kháng hóa chất: | Không ăn mòn |
| Xếp hạng lửa: | Lớp A. | Ứng dụng: | Mái nhà, tường, cách nhiệt sàn |
| Tỉ trọng: | 60-200kg/m3 | ||
| Làm nổi bật: | eco-friendly rock wool insulation board,sustainable construction mineral wool,energy efficient thermal insulation board |
||

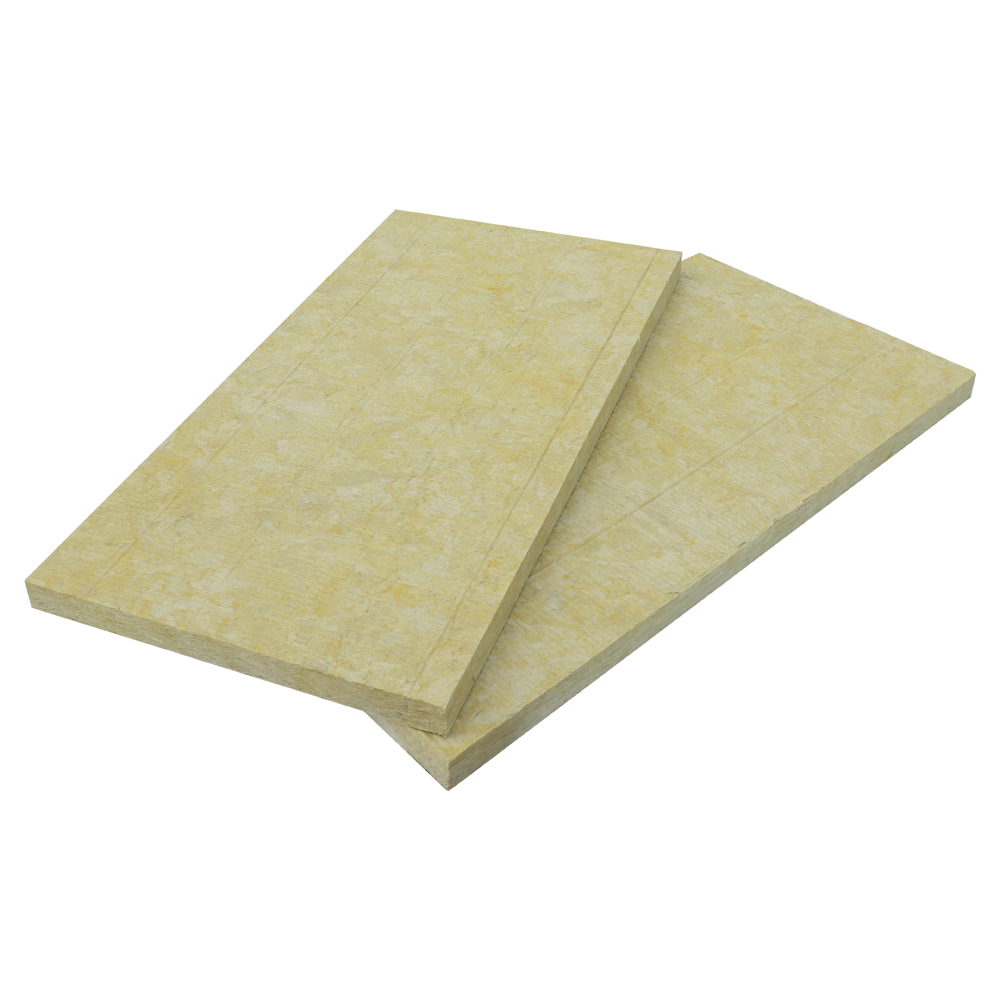

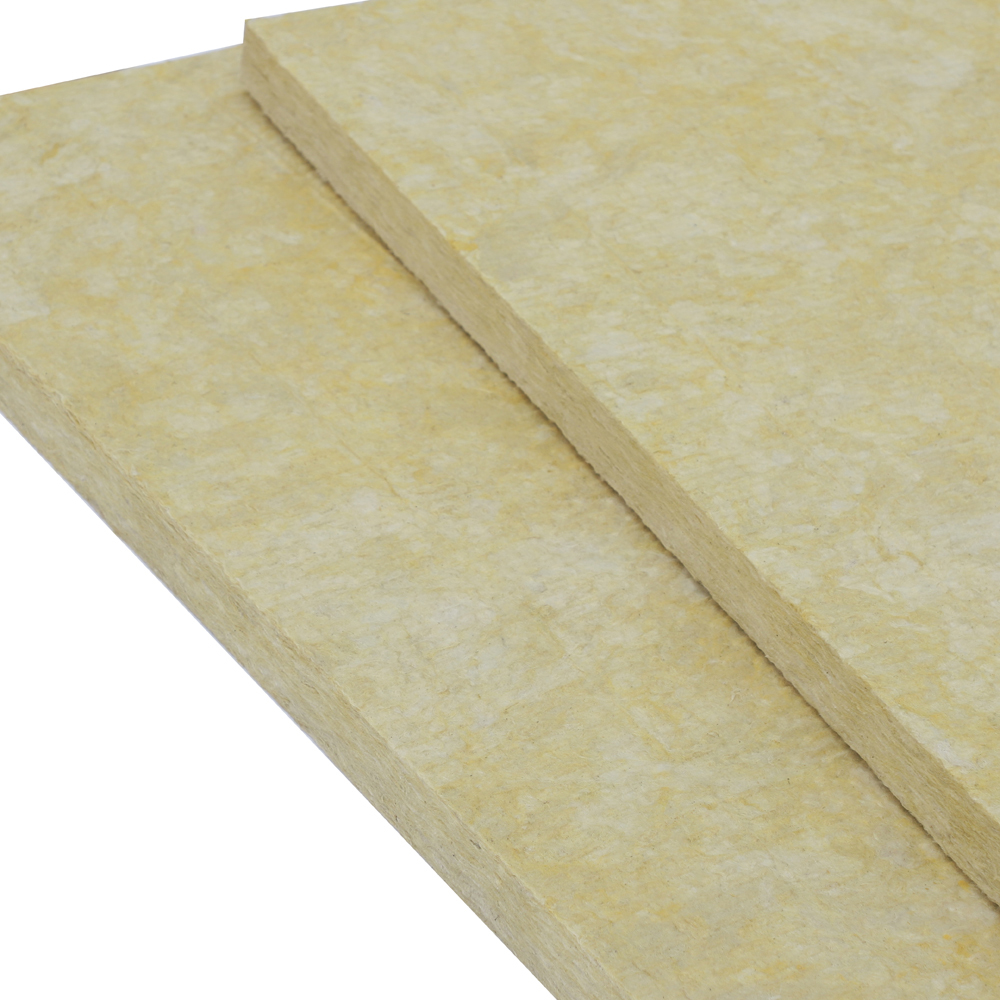

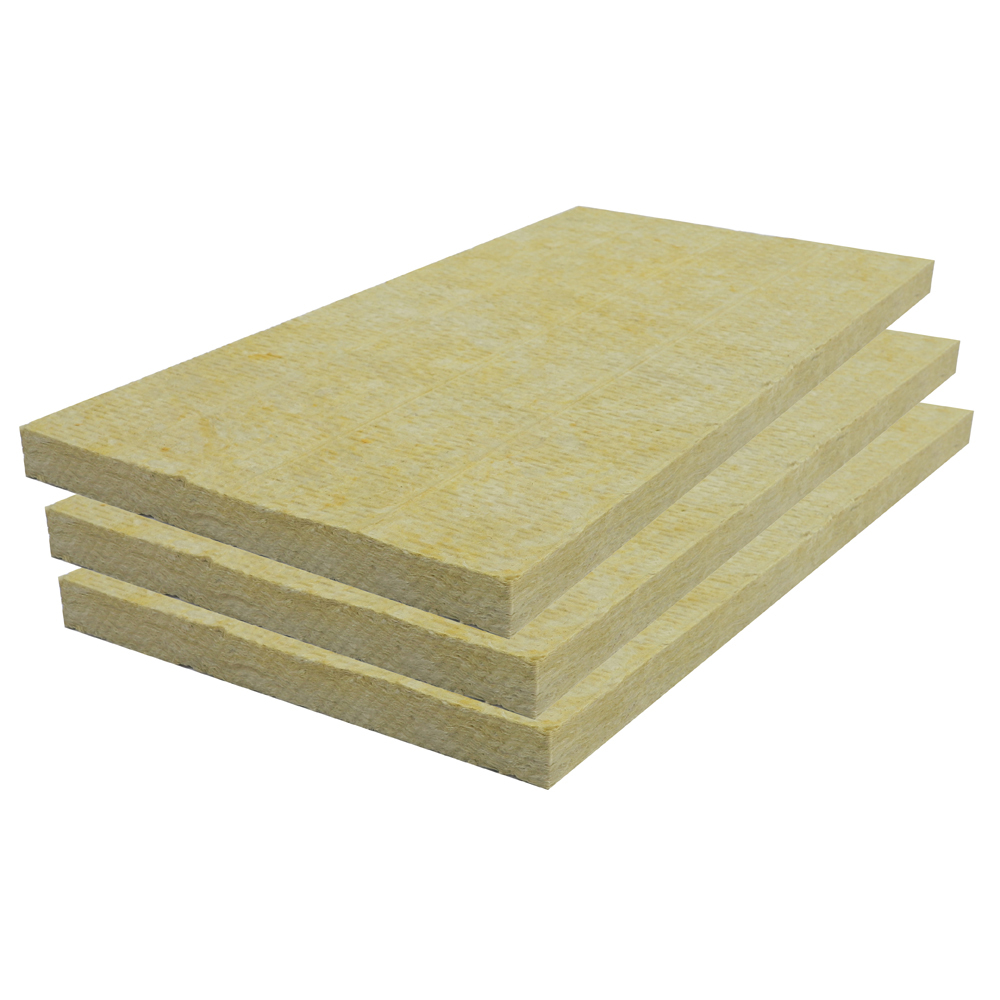

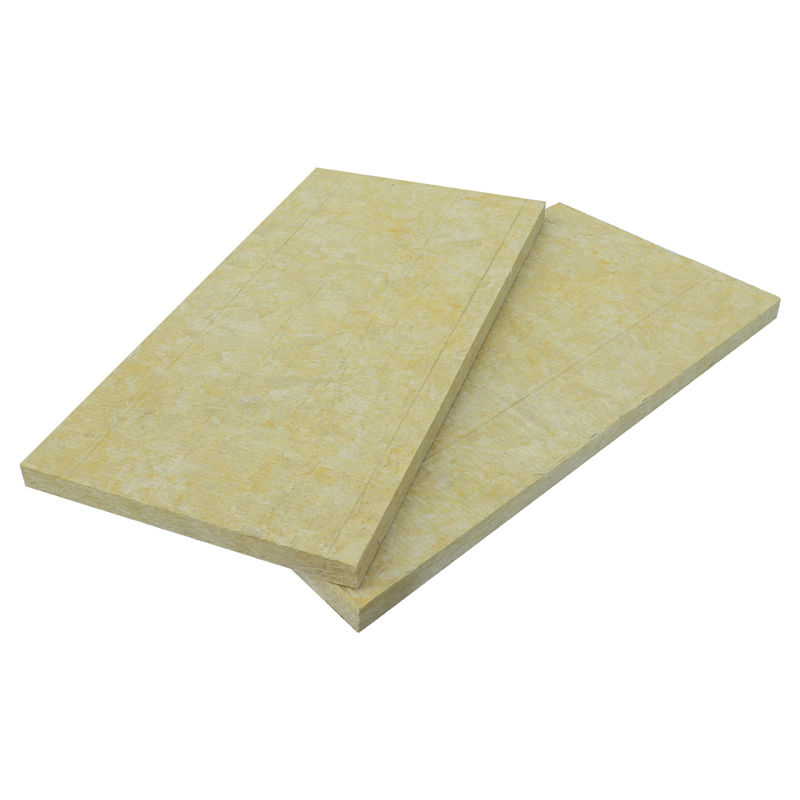

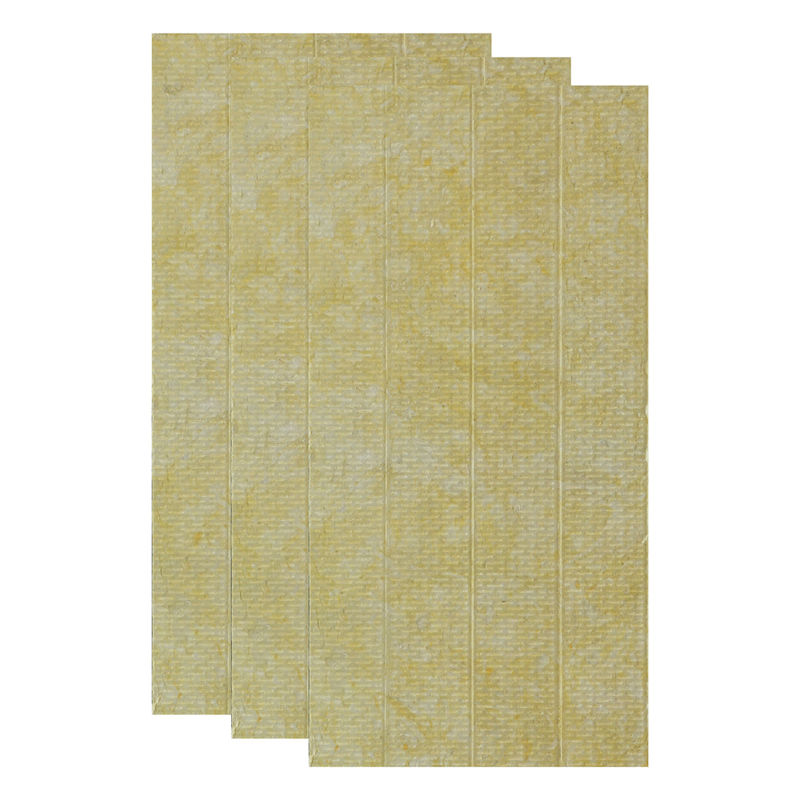

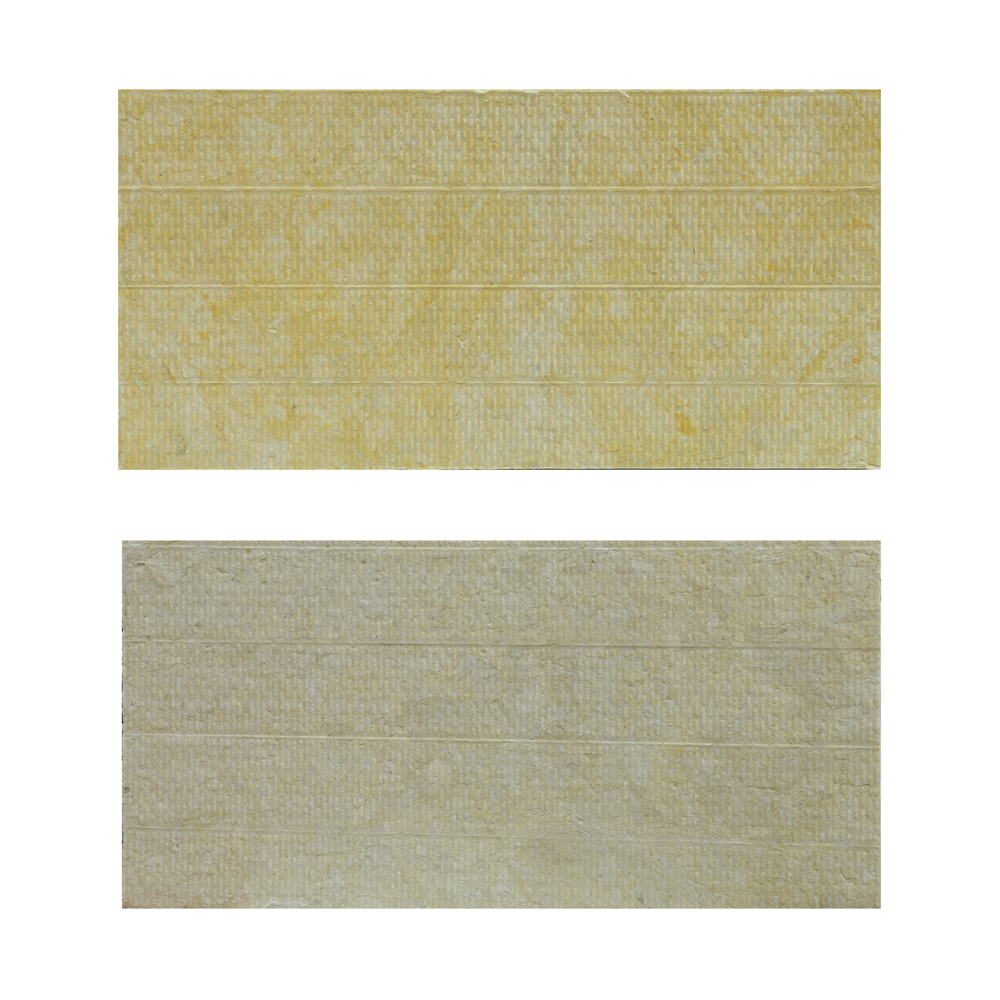

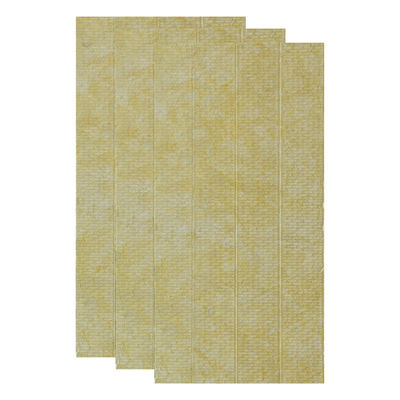

Product introduction of the Rock Wool Board
Commitment to sustainability meets performance in FANRYN Rock Wool Board. Made from abundant natural rocks and manufactured through an energy-efficient process, this board reduces carbon footprint while delivering exceptional insulation properties. Its non-combustible and corrosion-resistant qualities make it ideal for green building projects aiming for LEED or similar certifications.
Suitable for external walls, roofs, and industrial installations, it supports energy conservation and emission reduction goals without compromising on safety or durability.
Production details of the Rock Wool Board
Product parameter of the Rock Wool Board
|
Properties |
Board |
Standards |
|
Density Tolerance |
±10% |
GB/T 19686-2005 |
|
Fire Performance |
Non-Combustible |
GB/T 5464-1999 |
|
|
Reaction to fire Class A1 |
GB/T 8624-2006 |
|
Thermal Conductivity (W/mK, at70±5℃) |
≤0.044 |
GB/T 10295 |
|
Fiber Diameter |
7(+/-1)um |
GB/T 5480. 4 |
|
Shot Content (shot size＞0.25mm) |
≤12% |
|
|
Moisture Content |
≤0.5% |
|
|
Organic Matter Content |
≤4% |
|
|
Melting Point |
＞1000℃ |
|
Product size of the Rock Wool Board
|
Product |
Board |
|
Density (kg/m3) |
40-200 |
|
Size :L x W (mm) |
600X1200 |
|
Thickness (mm) |
30-100 |
Product application of the Rock Wool Board
External Wall Cladding Systems: Prevents vertical fire spread.
Roof Assemblies: Protects the building envelope from external fires.
Partition Walls: Creates fire-resistant compartments to contain blazes.
Floating Floors & Ceilings: Adds crucial fire resistance to floor assemblies.
Structural Protection: Insulates steelwork and protects critical infrastructure
Production Facing of rock wool board
Wire Mesh
Aluminum foil facing
Fiberglas cloth
Production packing of the Rock Wool Board
1. plastic bag
2. PE shrinking bag
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on rock wool board?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
