| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | fanryn |
| Chứng nhận: | ASTE E84 |
| Số mô hình: | chăn Galsswool |
| Số lượng đặt hàng tối thiểu: | 1*40hq |
| Giá bán: | 0.1-6$ |
| chi tiết đóng gói: | Túi nhựa chân không+Túi dệt+Túi PE |
| Thời gian giao hàng: | 7-10 ngày |
| Điều khoản thanh toán: | T/t |
| Khả năng cung cấp: | 10000 mét vuông |
| Tỉ trọng: | 10-48 kg/m3 | Kháng lửa: | Lớp A1 |
|---|---|---|---|
| Hàm lượng nước: | ≤1% | Ứng dụng: | Mái nhà, tường, sàn và lớp cách nhiệt HVAC |
| Kháng hóa chất: | Xuất sắc | Độ dẫn nhiệt: | 0,031-0.042 w/mk |
| Tác động môi trường: | Thân thiện với môi trường | Hiệu suất âm thanh: | Xuất sắc |
| Vật liệu: | Len thủy tinh | Loại cách nhiệt: | Cách nhiệt nhiệt |
| Độ ẩm: | <= 5% | Tính kỵ nước: | > = 98,2% |
Product Information:

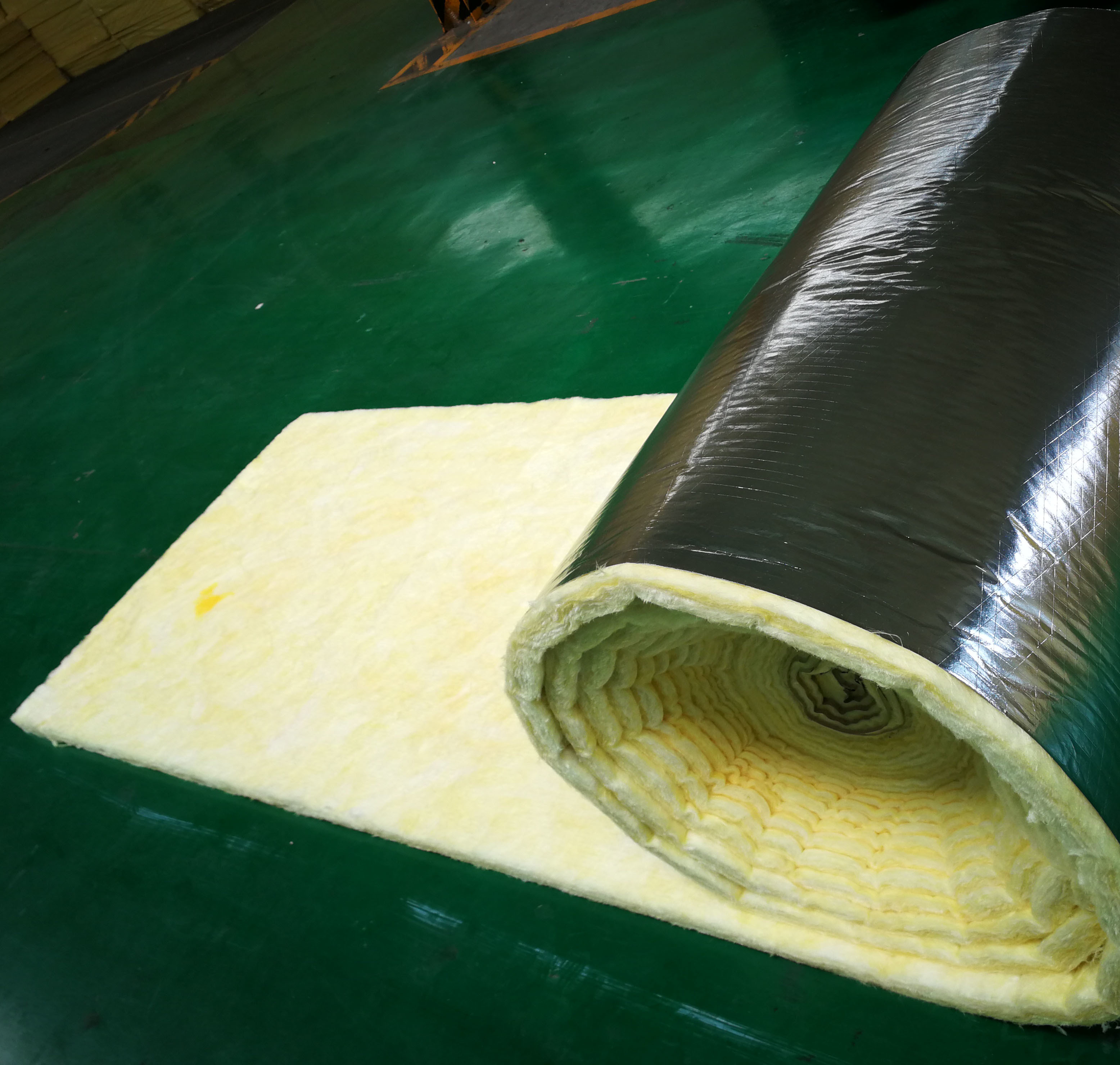

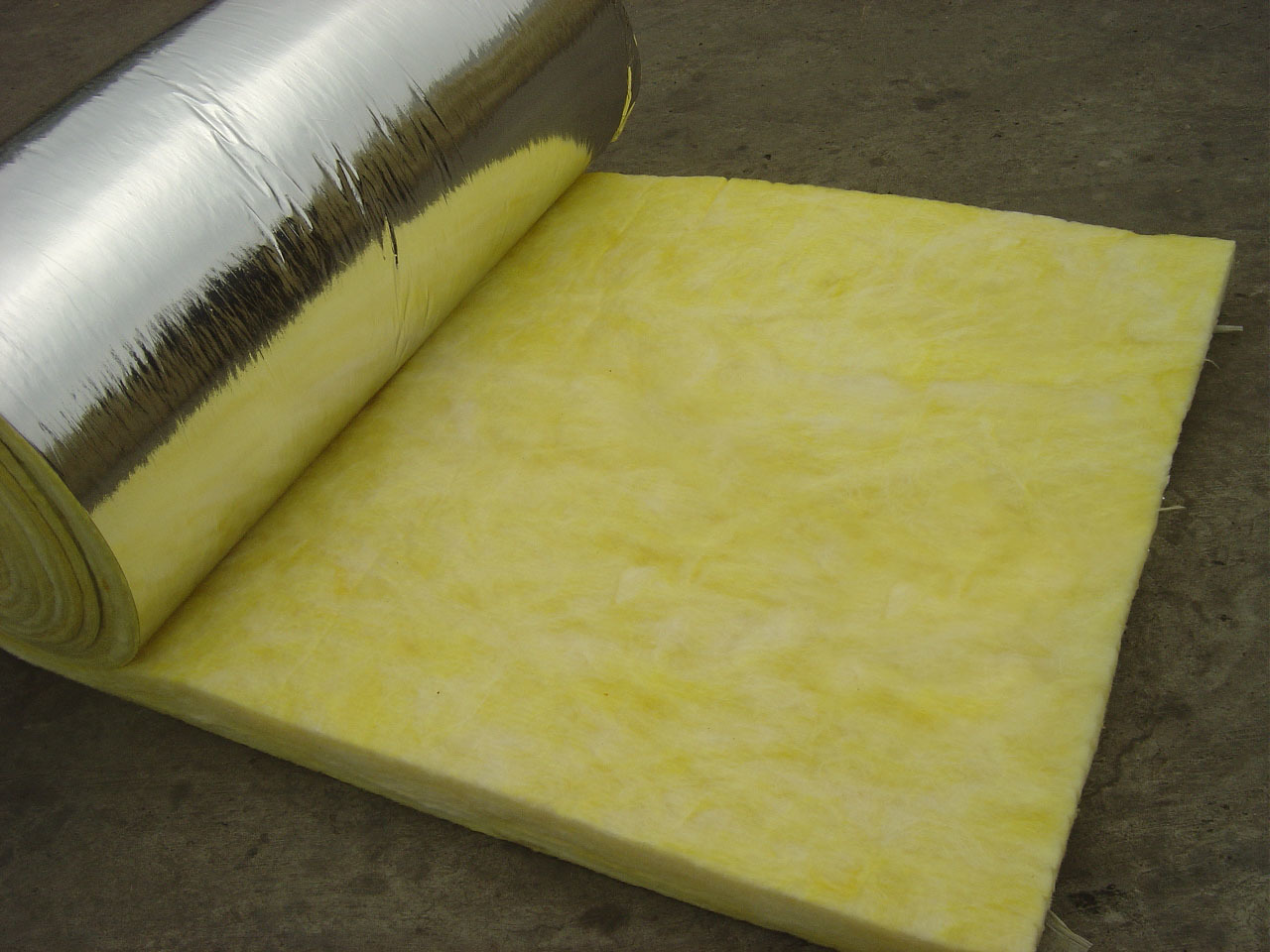

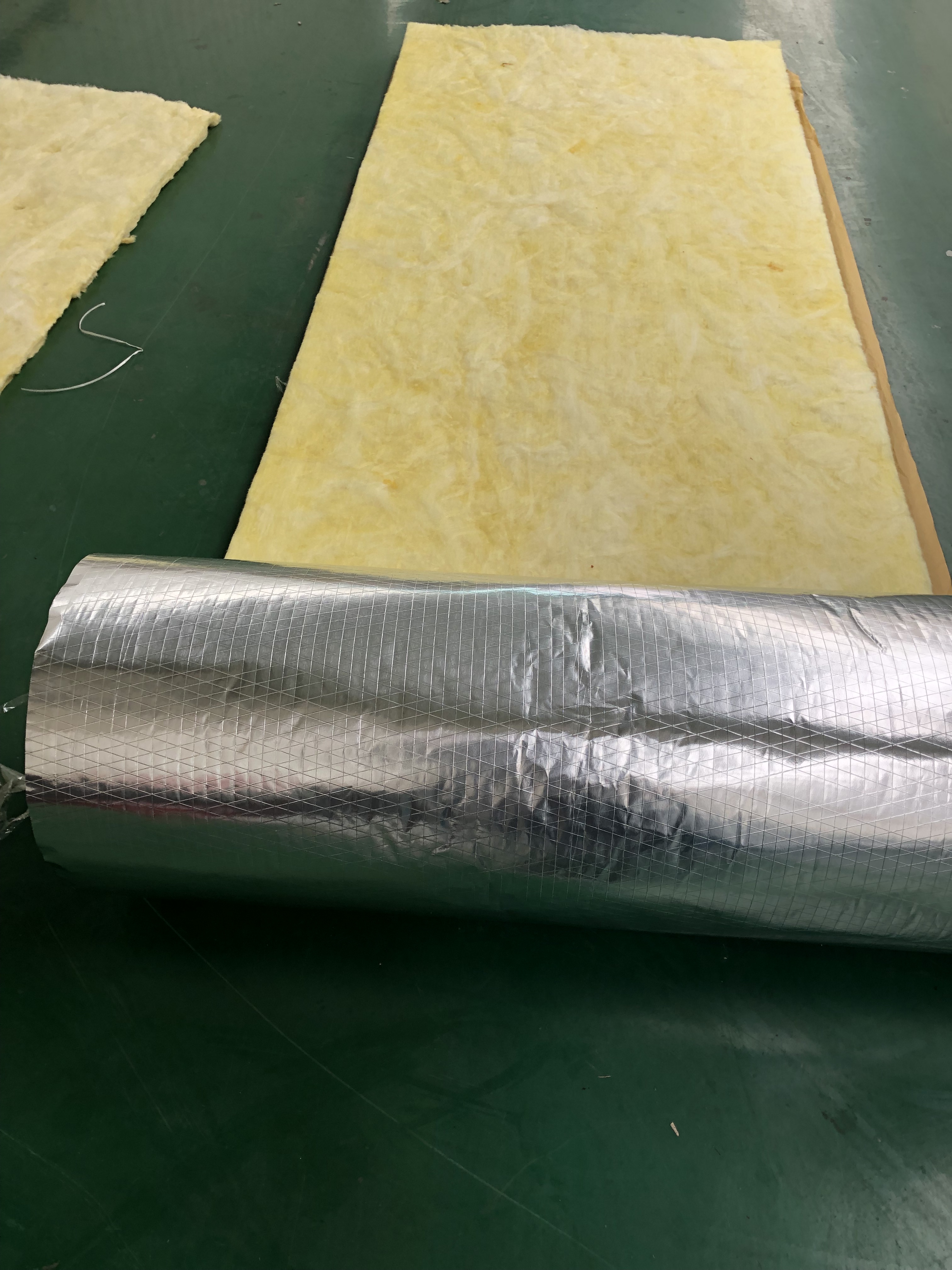

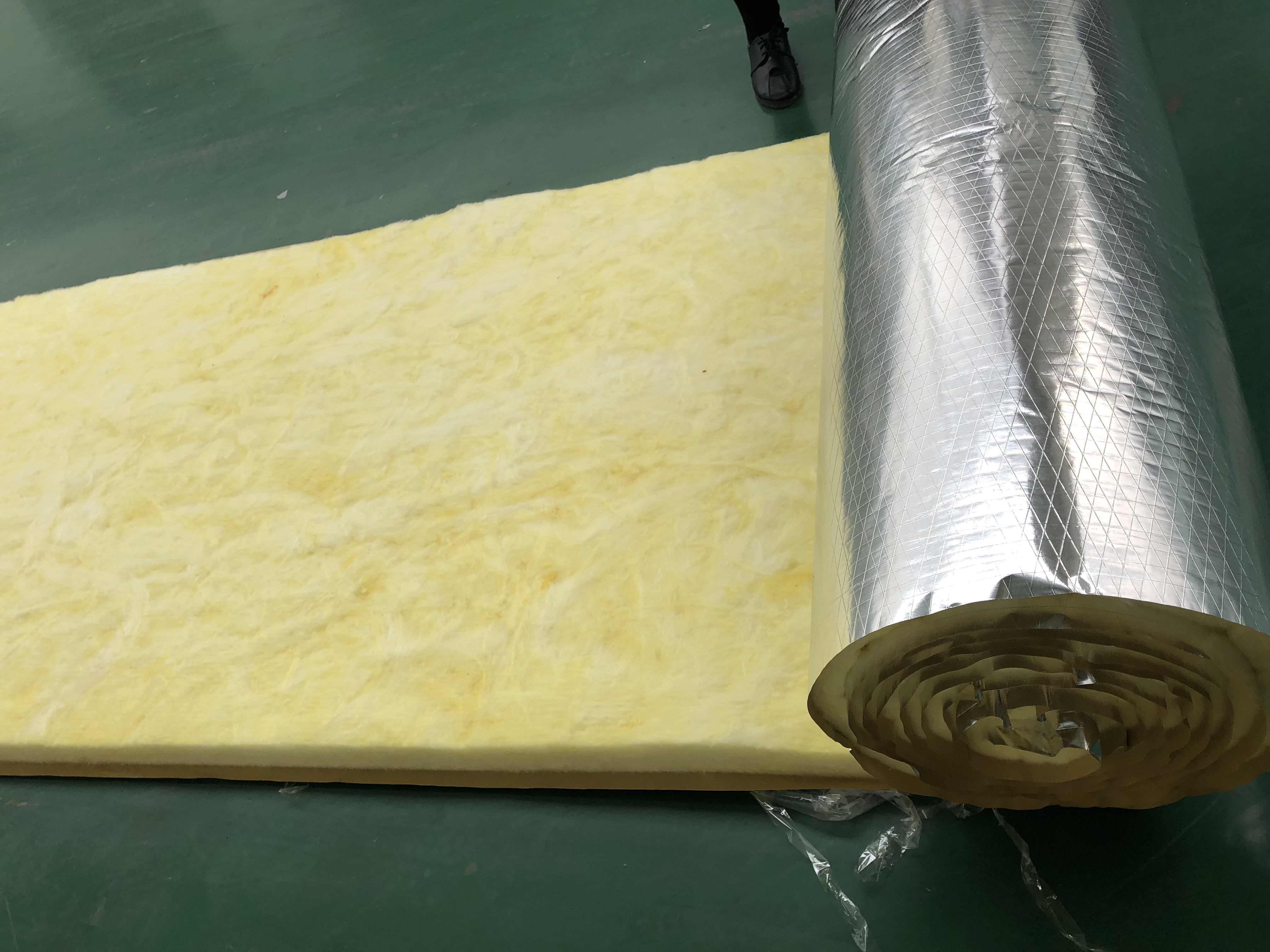

FANRYN centrifugal glass wool blanket insulation is designed for large-area installation applications. In addition to providing excellent thermal insulation, it effectively absorbs vibration and isolates noise—particularly mid-to-low frequency sounds—thereby reducing sound transmission and contributing to a better working environment. An optional aluminum foil facing is available, which improves moisture resistance, corrosion protection, and thermal reflectivity, resulting in enhanced overall durability and energy efficiency. This product is especially suitable for use in environments where hygiene or high humidity conditions are a concern.
Specification of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Rolls/packing |
|
|
10-48 |
0.025-0.2 |
5-30 |
0.6 |
2 rolls |
|
|
10-48 |
0.025-0.2 |
5-30 |
1.1 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.15 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.2 |
1 roll |
2 rolls overlapping |
|
10-48 |
0.025-0.2 |
5-30 |
1.25 |
1 roll |
2 rolls overlapping |
Technical Data of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
|
Technical Data |
|||
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-48 |
GB/T 5480.3 |
|
Average fiber dia |
μm |
5-8 |
GB/T 5480.4 |
|
Water content |
% |
≤ 1 |
GB/T 16400-2003 |
|
Grade of combustibility |
|
Non-combustible GradeA |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
250-400 |
GB/T 11835-2007 |
|
Thermal conductibility |
w/m·k |
0.034-0.06 |
GB/T 10294 |
|
Hydrophobicity |
% |
≥ 98 |
GB/T 10299 |
|
Moisture rate |
% |
≤ 5 |
GB/T 5480.7 |
Main application of Aluminum Foil Faced Fiberglass Insulation Roll Thermal Acoustic Blanket for HVAC Pipe Wrap:
1.Wall Insulation
Used as a thermal insulation layer for exterior or interior building walls, effectively reducing heat loss and improving energy efficiency.
2.Steel Structure Insulation
Ideal for insulating steel roofs and walls, offering both thermal and acoustic benefits along with moisture and corrosion resistance.
3.Indoor Partition Walls
Enhances the soundproofing and thermal performance of interior walls, creating quieter and more comfortable living or working spaces.
4.Train Compartments
Provides lightweight thermal and acoustic insulation for railway vehicles, improving passenger comfort and contributing to energy savings.
5.Sound Absorption and Acoustical Isolation
Widely used in studios, cinemas, and equipment rooms to reduce noise transmission and enhance acoustic environments.
6.HVAC Duct Insulation
Wraps around ventilation ducts to prevent heat loss or gain, control condensation, and reduce operational noise.
Standards: According to GB STANDARDS,EN13162,EN13172,ISO9001:2000
Advantage:
1.Excellent Resilience: Recovers to original thickness within 24 hours after unpacking, ensuring consistent performance and easy installation.
2.Uniform Thickness and Color: Offers high consistency in appearance and dimensions for a neat, professional finish.
3.Superior Dimensional Stability: Maintains structural integrity over time, even under varying environmental conditions.
4.Reduced Fiber Irritation: Features soft, long glass fibers and advanced bonding technology to minimize fiber shedding, improving installation safety and comfort.
Details:
Packing:
1.Vacuum plastic bag+woven bag
2.Vacuum plastic bag+woven bag+PE bag
3.Vacuum plastic bag+PE shrinking bag
4.PE shrinking bag
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 7-10 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
Our service
-One year warranty for all products
-Necessary technical support
-Delivery quality products with excellent service on time
-Supply one stop solution on insulation and ventilation products
-Supply high level QC service
