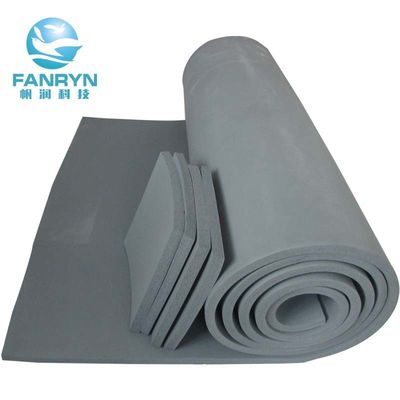

Fire Resistance Class B1 Rubber Plastic Insulation Sheet with High Sound Absorption and Water Repellent Properties

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: fanryn
Chứng nhận: BS476Part 7∝Part6
Số mô hình: Tấm cách nhiệt cao su
Số lượng đặt hàng tối thiểu: 1 * 20ft
Giá bán: 0.1-5$
chi tiết đóng gói: Túi nhựa
Thời gian giao hàng: 7-10 ngày
Điều khoản thanh toán: T/t
Khả năng cung cấp: 10000 mét vuông
Thông tin chi tiết
Kháng hóa chất: Chống lại hầu hết các hóa chất Loại cách nhiệt: Nhiệt
Chống cháy: Lớp 0, Lớp B1 Tỉ trọng: 40-90 kg/m3
Hấp thụ âm thanh: Cao Phương pháp cài đặt: Lỏng lẻo, batts hoặc cuộn
Ứng dụng: Mái nhà, tường, sàn, ống, ống dẫn Tác động môi trường: Thân thiện với môi trường
Độ bền: Lâu dài Phạm vi nhiệt độ: -50 ° C đến 110 ° C.
Chống ẩm: Thuốc chống nước
Làm nổi bật:

sound insulation rubber sheet

,

house repair rubber mat

,

factory direct rubber roll


Mô tả sản phẩm

CLASS B0 Rubber Plastic Insulation Sheet
FANRYN CLASS B0 RUBBER PLASTIC INSULATION SHEET is a premium thermal insulation material engineered for superior performance. Combining exceptional thermal conductivity with enhanced energy efficiency and unparalleled moisture resistance, it ensures long-term reliability and significant cost savings. Manufactured in standard charcoal-grey finish with advanced fire-retardant additives for exceptional fireproof properties.
Compliant with stringent European standards, this product has gained international recognition and is widely exported to Southeast Asia, the Middle East, Australia, and other global markets.
Product Specifications
Dimensions & Tolerances
Thickness 10mm 15mm 20mm 25mm 30mm
Length per piece 20m 20m 10m 10m 10m
Tolerance +1.5 +1.5 +3.5 +4 +5
Technical Data
Item Unit Specification Standard
Density Kg/m³ 40~90 GB/T 6343
Temperature -50~110 GB/T 17794
Oxygen index % ≥40 GB/T 2406
SDR ≤65 GB 8627-1999
Water vapor permeability Factor ≥1.0×10⁴ GB/T 17146-1997
Water absorption ratio in vacuum % ≤10 GB/T 17794-2008
Dimension stability 105±3℃,7d % ≤10 GB/T 8811
Crack resistance N/cm ≥2.5 GB/T 10808
Compression resilience ratio % ≥70 GB/T 6669
Applications
  • Building & HVAC Efficiency: Specialized insulation for workshops and commercial buildings to enhance air conditioning performance and reduce energy consumption
  • Industrial Process Optimization: Comprehensive insulation systems for temperature-critical containers and pipelines to improve thermal stability
  • Acoustic Management: Engineered sound absorption products for noise reduction in mechanical systems and industrial environments
  • Specialized Applications: High-performance insulation for protective equipment, controlled environments, and precision temperature management
Product Advantages
  • Outstanding Thermal Performance: Exceptionally low thermal conductivity reduces heat transfer for substantial energy savings
  • Comprehensive Protection & Reliability: Excellent fire resistance, effective vibration damping, and reliable moisture protection with closed-cell structure
  • Easy & Professional Installation: High flexibility with clean finish enables quick, seamless application in complex scenarios
Product Images

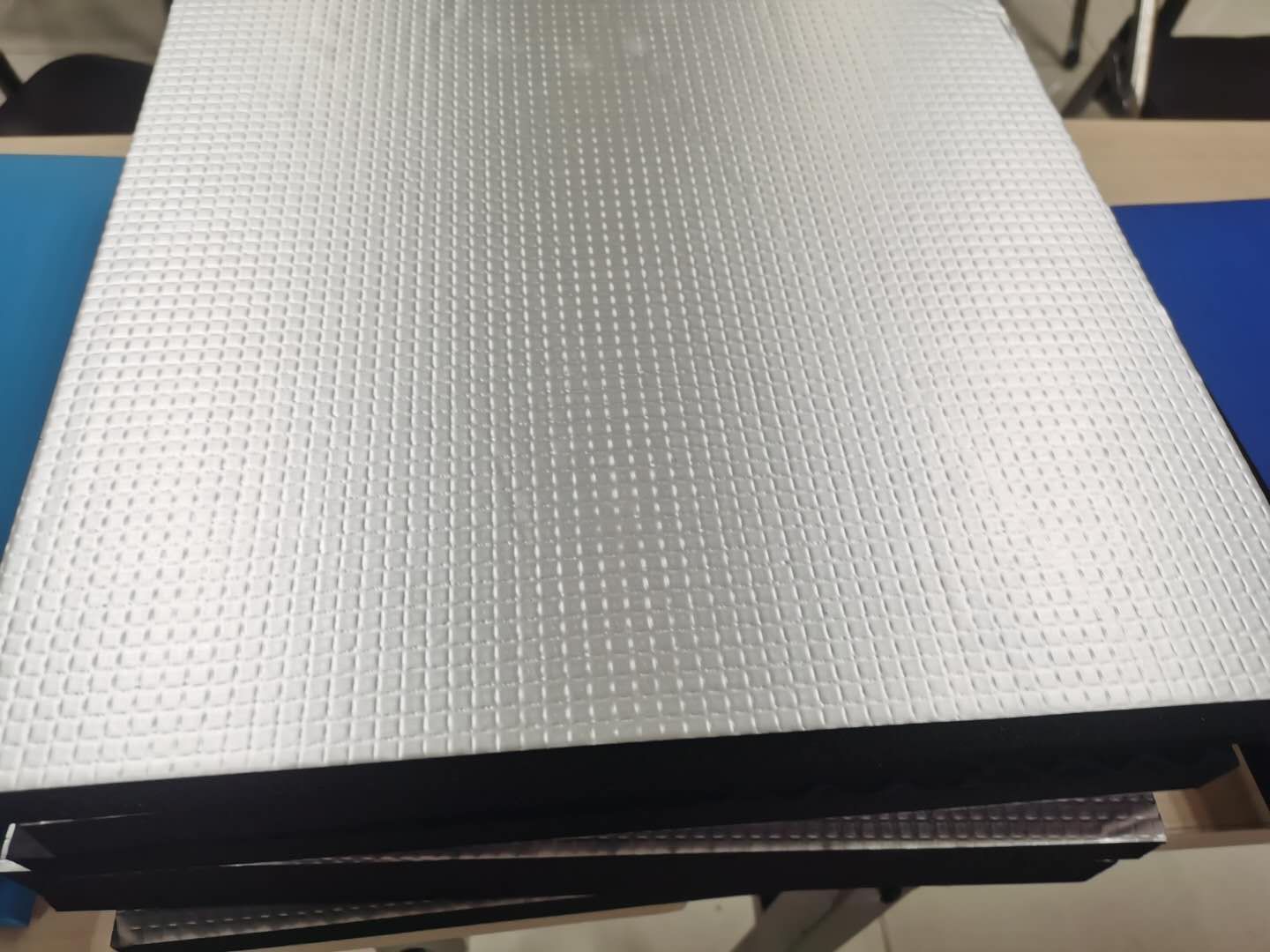

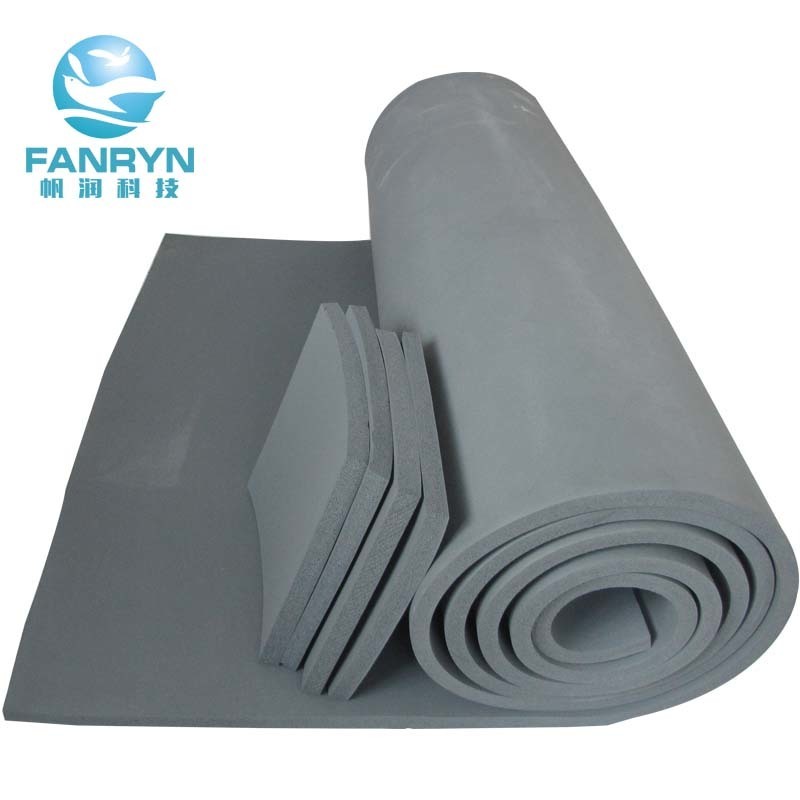

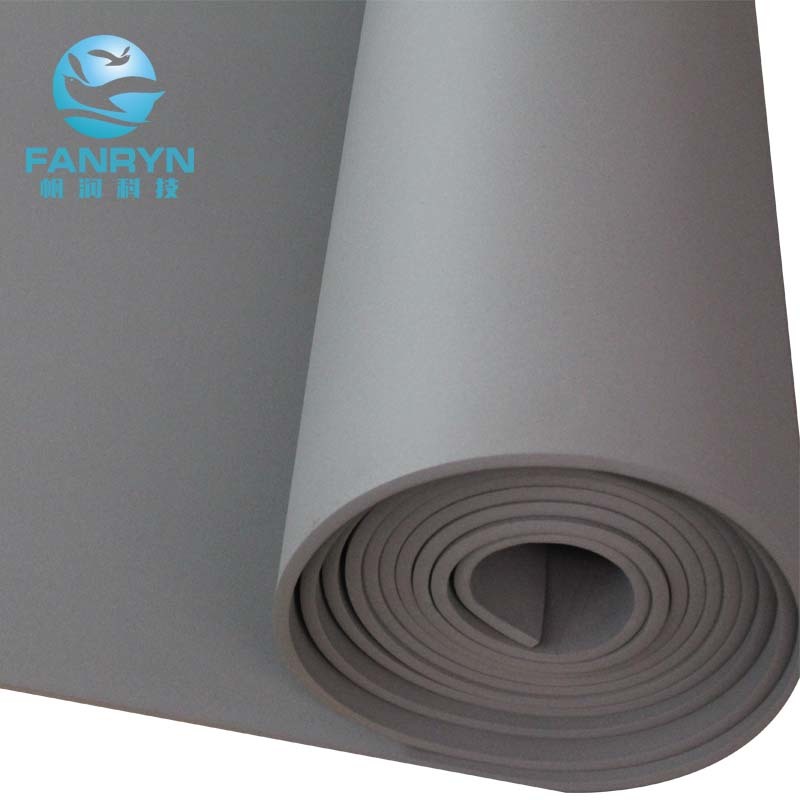

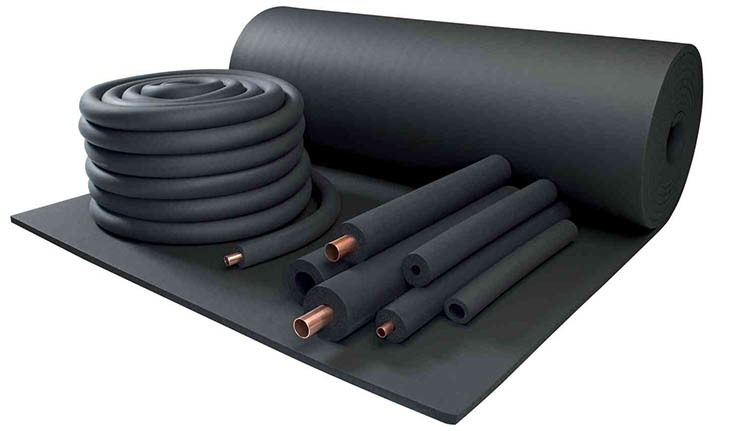

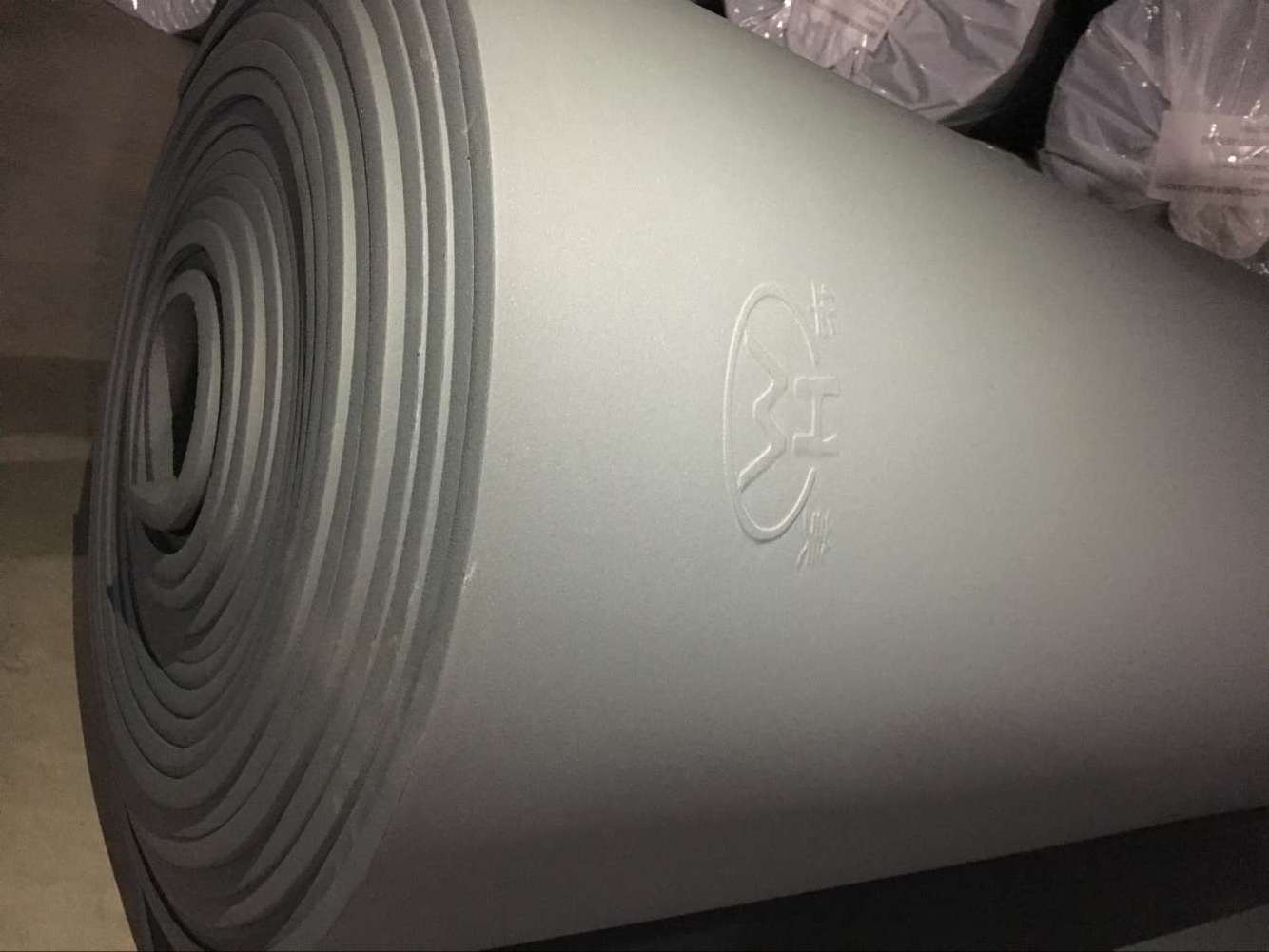

CLASS B0 Rubber Plastic Insulation Sheet product view CLASS B0 insulation sheet installation example CLASS B0 rubber plastic insulation close-up CLASS B0 insulation material application CLASS B0 insulation sheet technical specifications CLASS B0 rubber plastic insulation industrial use
Packaging Options
1. PE plastic bag
2. PE plastic bag + carton
Note: OEM is acceptable
CLASS B0 insulation packaging example
If you are interested in our products, please click here to see all the products
Additional CLASS B0 product image 1 Additional CLASS B0 product image 2 Additional CLASS B0 product image 3
Frequently Asked Questions
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag + woven bag (Standard Export Packing)
Q3: What is your lead time for one 40HC container order?
A3: Usually 10-15 work days after placing order
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly
