| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 15 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Hàm lượng nước: | 1% | Đường kính sợi trung bình: | <8,0μm |
|---|---|---|---|
| Kháng độ ẩm: | Không hấp thụ | Phương pháp cài đặt: | Đặt hoặc treo |
| Cách sử dụng: | Mái nhà | Vật liệu: | Len thủy tinh |
| Điện trở nhiệt: | 4,5 (Hr⋅Ft²⋅F/Btu) | Nhiệt độ làm việc: | 500 |
| Màu sắc: | MÀU VÀNG | Lợi thế: | Vật liệu A1 không thể cháy được |

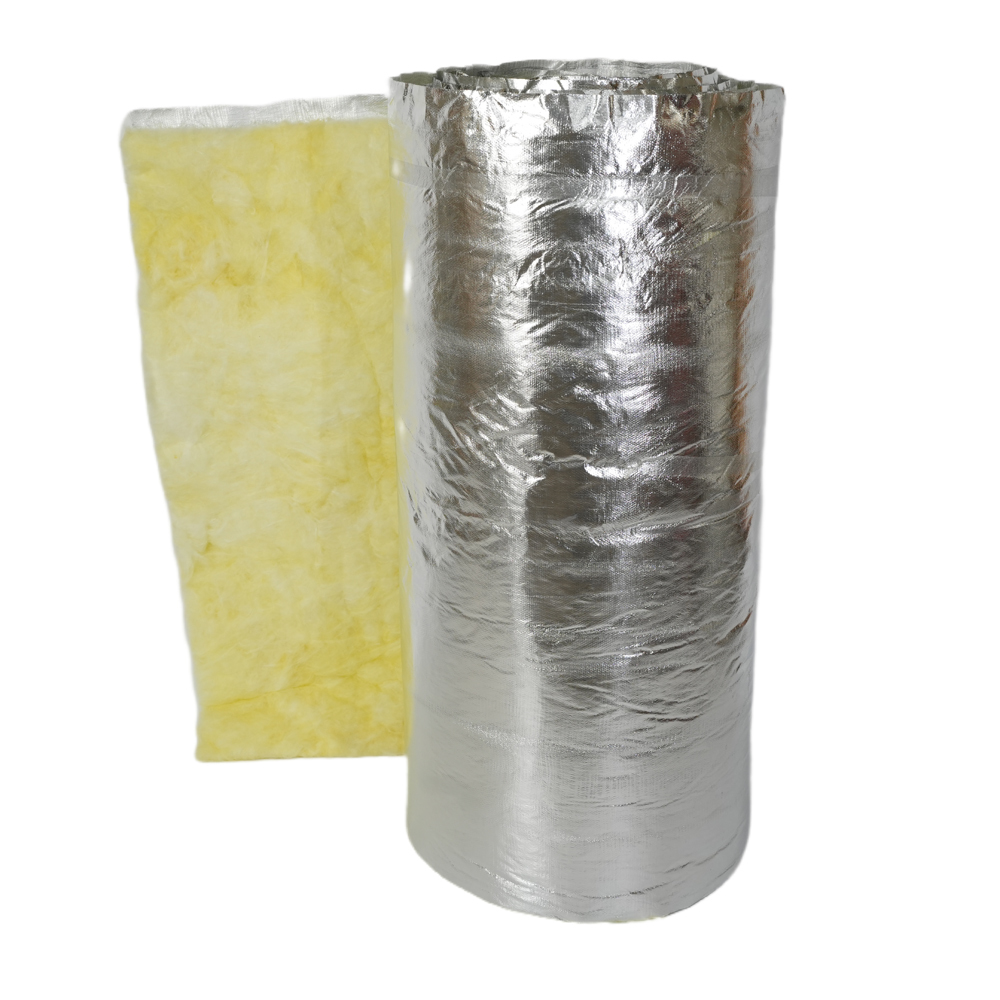

| Bề mặt: | Lá nhôm | Độ dẫn nhiệt: | 0,034 W/mK |
| không cháy: | Đạt tiêu chuẩn (Hạng A) | Kỵ nước: | > 98% |
| Chứng nhận: | CE, ISO, SGS |

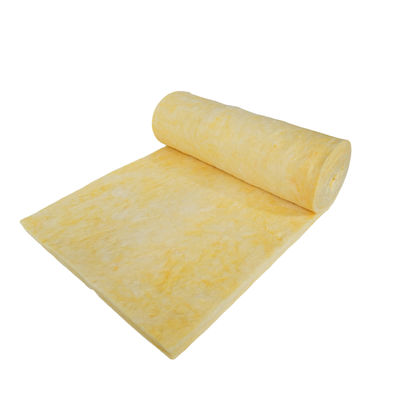

Safety first. FANRYN Glass Wool Blankets are certified as Non-combustible Grade A (GB 8624-1997), providing critical fire protection for commercial and residential buildings. Combined with its excellent thermal and acoustic properties, it creates a safer, quieter, and more comfortable space. Our rigorous quality control in every production process ensures that every roll meets the highest standards of safety and performance, giving you complete peace of mind.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Bulk density | kg/m3 | 10-48 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Preshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.043 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density(kg/m3) | Thickness(m) | Thermal conductibility(W/m.k) | Thermal resisitance(m2.K/W) |
|---|---|---|---|
| 10 | 0.05 | 0.043 | 1.163 |
| 10 | 0.1 | 0.043 | 2.326 |
| 12 | 0.05 | 0.042 | 1.190 |
| 12 | 0.1 | 0.042 | 2.381 |
| 14 | 0.05 | 0.041 | 1.220 |
| 14 | 0.1 | 0.041 | 2.439 |
| 16 | 0.05 | 0.039 | 1.282 |
| 16 | 0.1 | 0.039 | 2.564 |
| 20 | 0.025 | 0.038 | 0.658 |
| 20 | 0.05 | 0.038 | 1.316 |
| 24 | 0.025 | 0.036 | 0.694 |
| 24 | 0.05 | 0.036 | 1.389 |
| 32 | 0.025 | 0.034 | 0.735 |
| 32 | 0.05 | 0.034 | 1.471 |
| 48 | 0.025 | 0.033 | 0.758 |
| 48 | 0.05 | 0.033 | 1.515 |
| Density(kg/m3) | Thickness(m) | Length (m) | Width (m) | Rolls/packing | |
|---|---|---|---|---|---|
| 10-48 | 0.025-0.2 | 5-30 | 0.6 | 2 rolls | |
| 10-48 | 0.025-0.2 | 5-30 | 1.1 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.15 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.2 | 1 roll | 2 rolls overlapping |
| 10-48 | 0.025-0.2 | 5-30 | 1.25 | 1 roll | 2 rolls overlapping |
Note: OEM is acceptable
A1: Our experienced QC team will inspect product's quality in every process
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
A3: Usual 10-15 work days after placing order.
A4: Our glass wool blanket can be freely cut in construction according the shape required.
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
