| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Cường độ nén: | 10-50 kPa | Hấp thụ âm thanh: | Lên đến 1.0 NRC |
|---|---|---|---|
| Vật liệu: | Len khoáng | Độ bền kéo: | 10-50 kPa |
| Kháng độ ẩm: | Chống ẩm | Hấp thụ nước: | ít hơn 1% |
| Tác động môi trường: | Thân thiện với môi trường và có thể tái chế | Loại cách nhiệt: | Cách nhiệt nhiệt |
| Kháng hóa chất: | Chống lại hầu hết các hóa chất | Tỉ trọng: | 10-100 kg/m3 |
| Ứng dụng: | Mái nhà, tường và lớp cách nhiệt | Kháng lửa: | Lớp A1 |
| Độ dẫn nhiệt: | 0,035-0,044 W/mK | Điểm nóng chảy: | 1000-1200°c |
| Làm nổi bật: | thermal insulation glass wool board,glass wool board for air ducts,glass wool board with warranty |
||

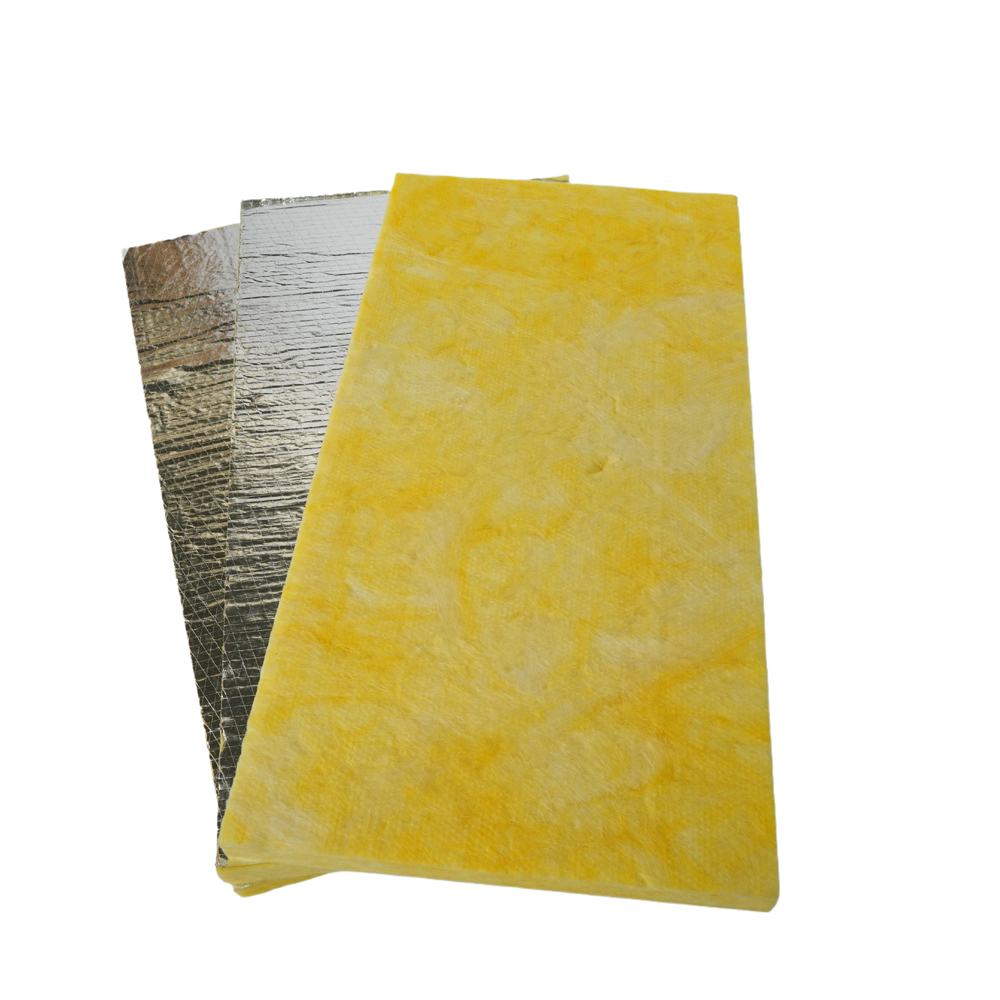

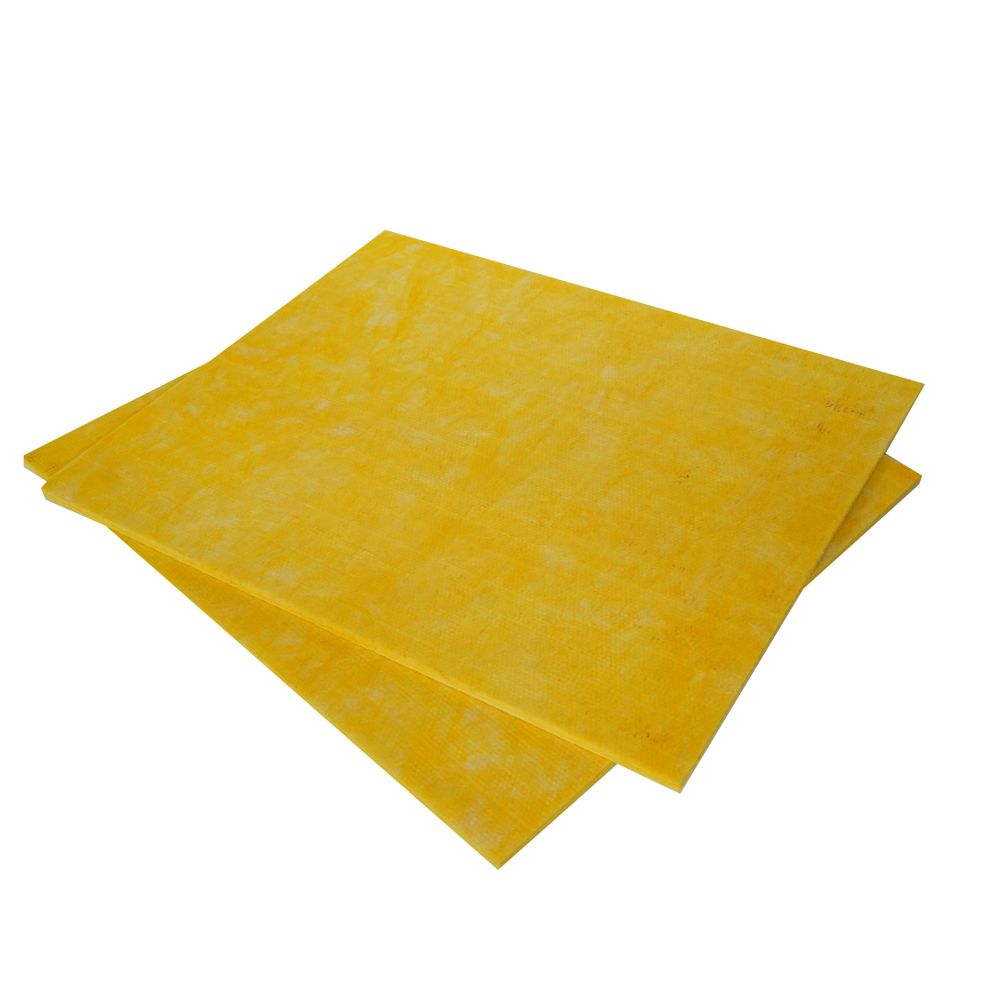

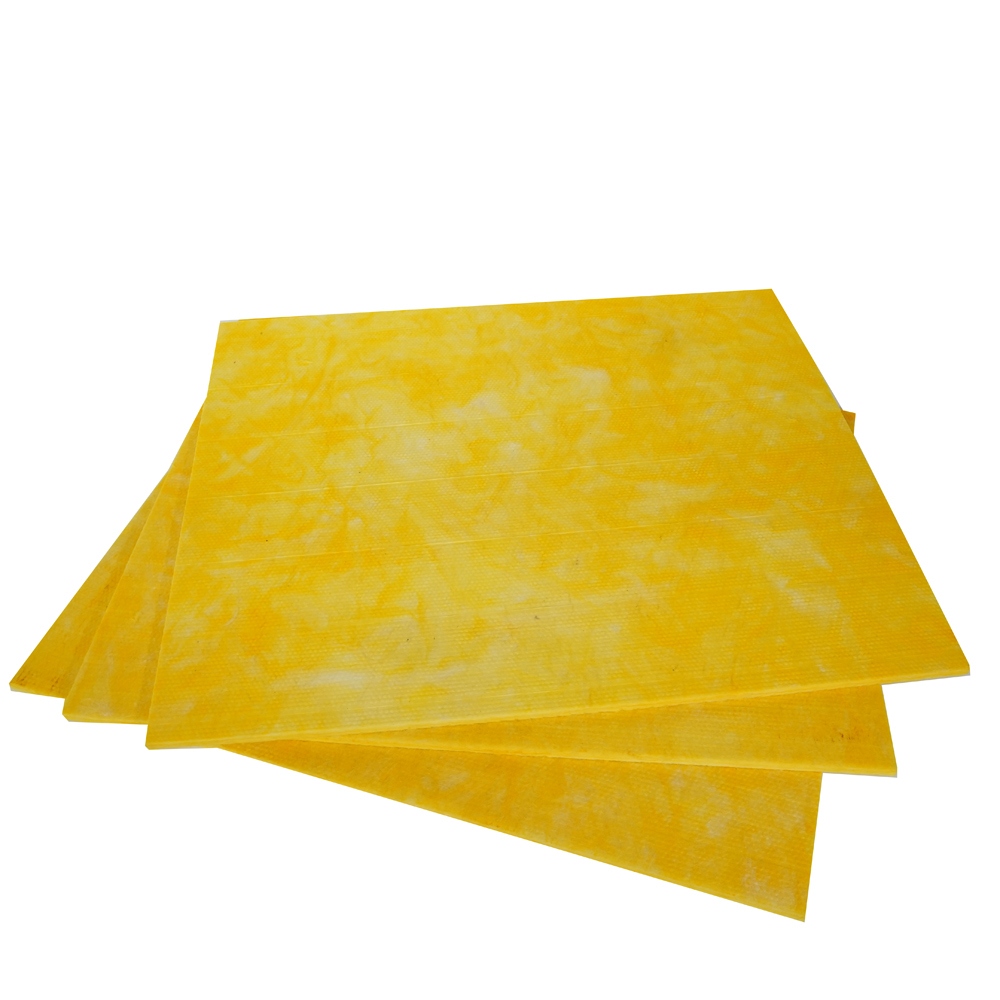

FANRYN Glass Wool Board is the ideal choice for insulating HVAC air ducts and bellows. It effectively prevents heat loss or gain in ductwork, ensuring energy-efficient operation of air conditioning and ventilation systems. Its low moisture rate and stability make it durable for long-term use within building cavities.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Bulk density | kg/m3 | 24-96 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Reshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.031-0.042 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m32000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density(kg/m3) | Thickness(m) | Length (m) | Width (m) | Pcs/packing |
|---|---|---|---|---|
| 24-96 | 0.025-0.1 | 0.6-1.25 | 0.6 | 5-18 |
| 24-96 | 0.025-0.1 | 0.6-2.4 | 1.1-1.25 | 5-18 |
Low Thermal Conductivity: Maximizes energy conservation in HVAC systems.
Lightweight & Durable: Does not place excessive load on ductwork while resisting vibration.
Hydrophobic Properties: (>98.2%) resists moisture absorption from condensation.
High Reshrinking Temperature: Withstands temperatures up to 250°C, maintaining integrity.
Clean and Safe: Low dust emission and non-combustible nature enhance system safety.
Typical Applications
Thermal insulation lining for sheet metal air ducts.
Insulation for flexible bellows and ventilation pipes.
Wrapping for air handling units (AHUs).
The normal packing is plastic bag
OEM is acceptable

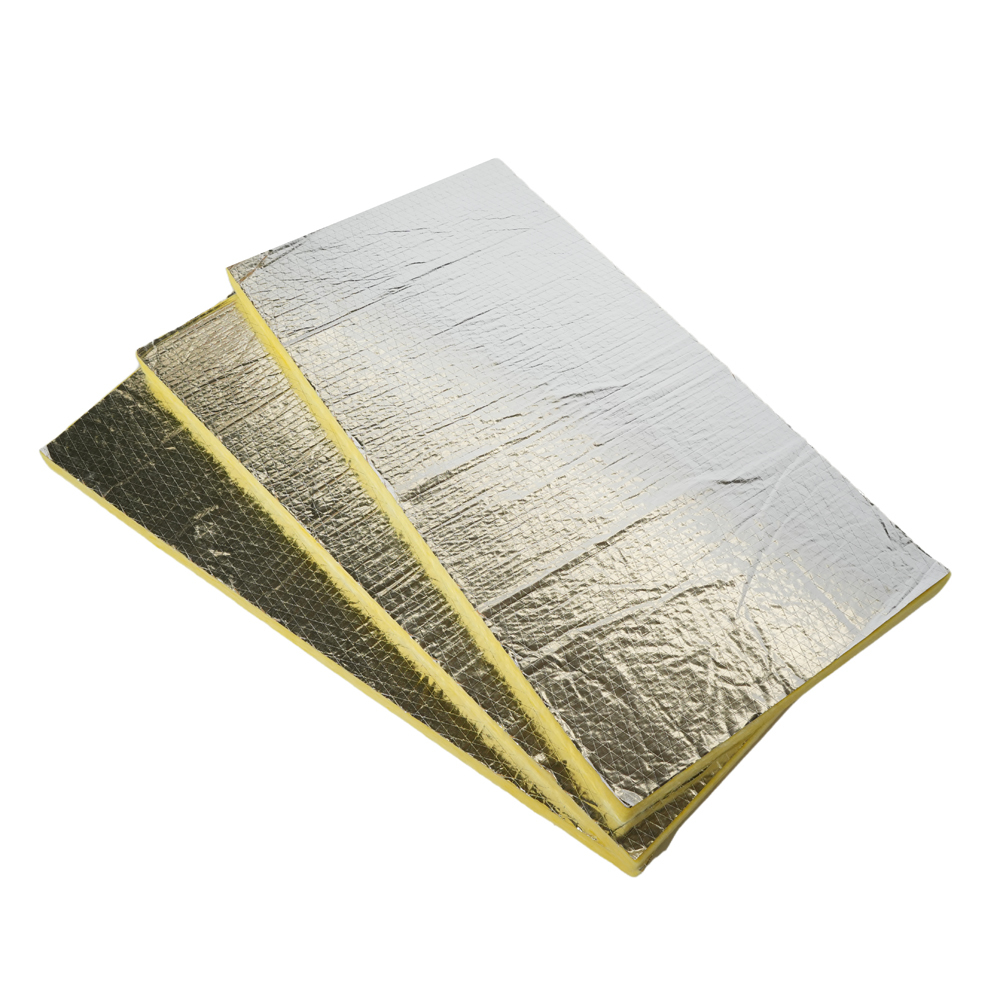

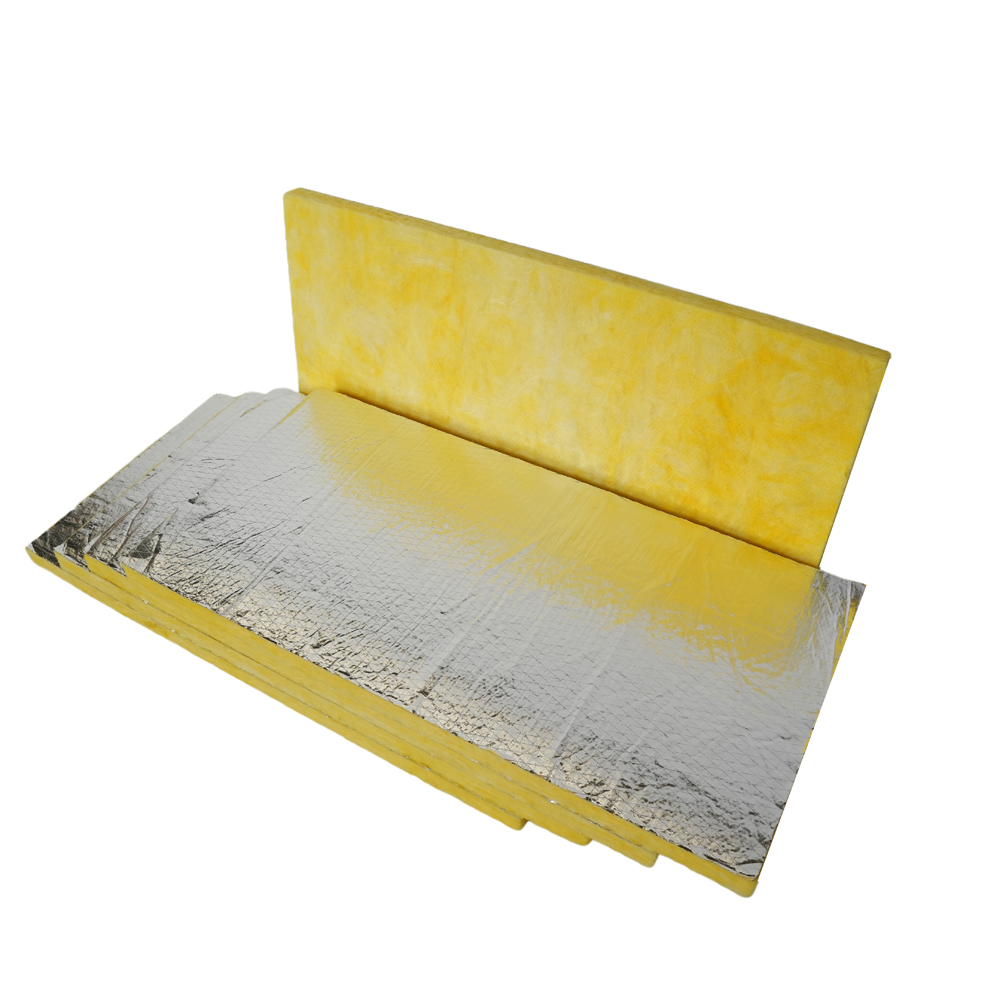

Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
