| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| Số lượng đặt hàng tối thiểu: | 1 40 HC |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Kích thước: | Khác nhau (ví dụ: bảng 600x1200 mm) | chống cháy: | Không cháy, loại A1 |
|---|---|---|---|
| Ứng dụng: | Cách nhiệt tòa nhà, cách nhiệt công nghiệp, HVAC | nướcSự hấp thụ: | <1% |
| tác động môi trường: | Có thể tái chế, thân thiện với môi trường | Tỉ trọng: | 40-200 kg/m³ |
| độ dày: | 25-100 mm | Phương pháp cài đặt: | Sửa chữa cơ học hoặc chất kết dính |
| Vật liệu: | Len khoáng | Dẫn nhiệt: | 0,035 W/m·K |
| Cường độ nén: | ≥10 kPa | hệ số hấp thụ âm thanh: | 0,85 |
| Sản phẩm: | Lông khoáng cách nhiệt | Tính thấm hơi: | Cao |
| Nhiệt độCứng kháng: | -268°C đến 700°C | ||
| Làm nổi bật: | HVAC ductwork insulation pipe,thermal insulation mineral wool pipe,acoustic insulation pipe for ducts |
||

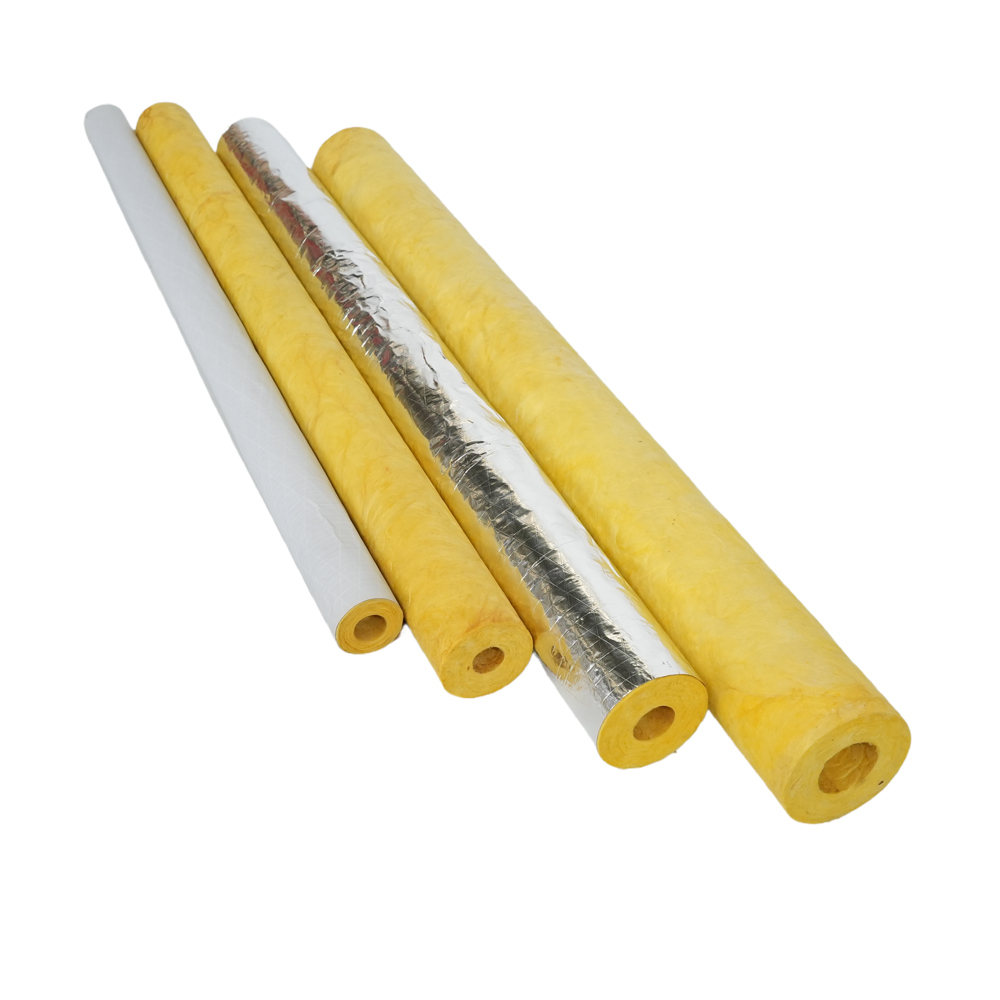

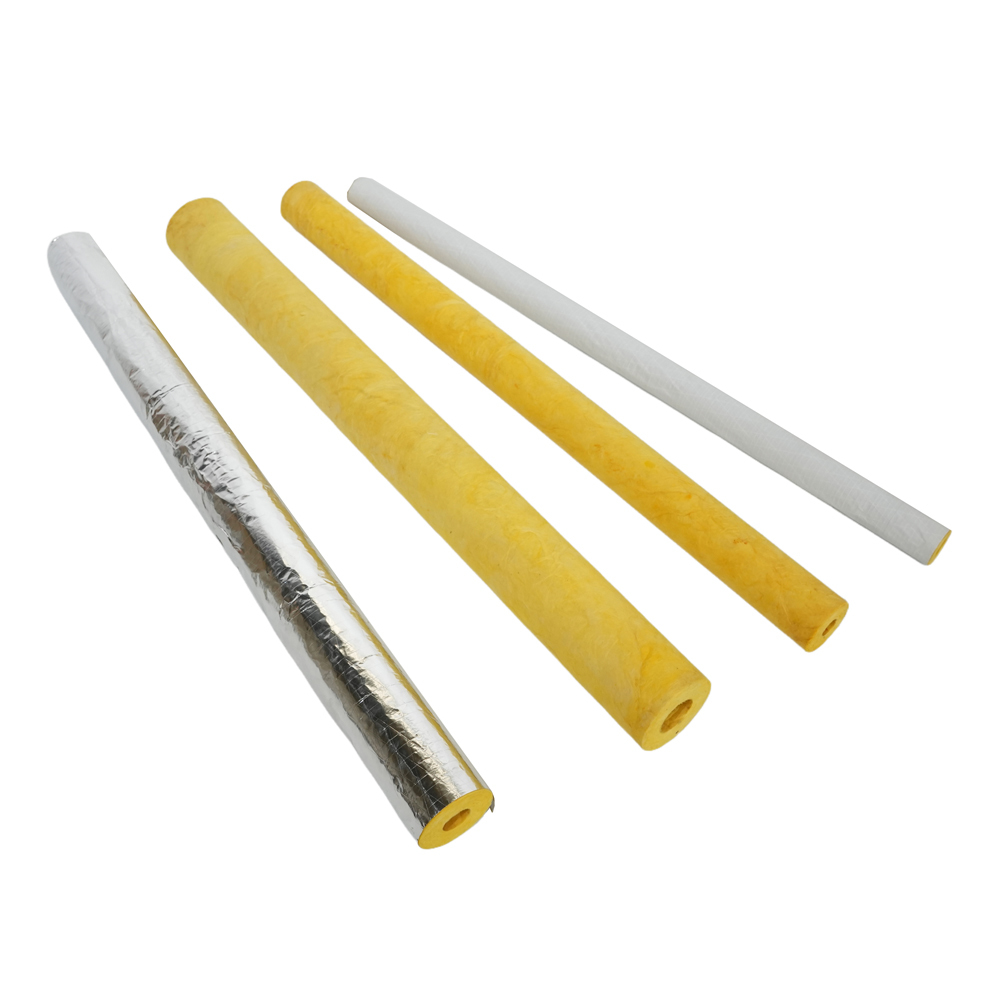

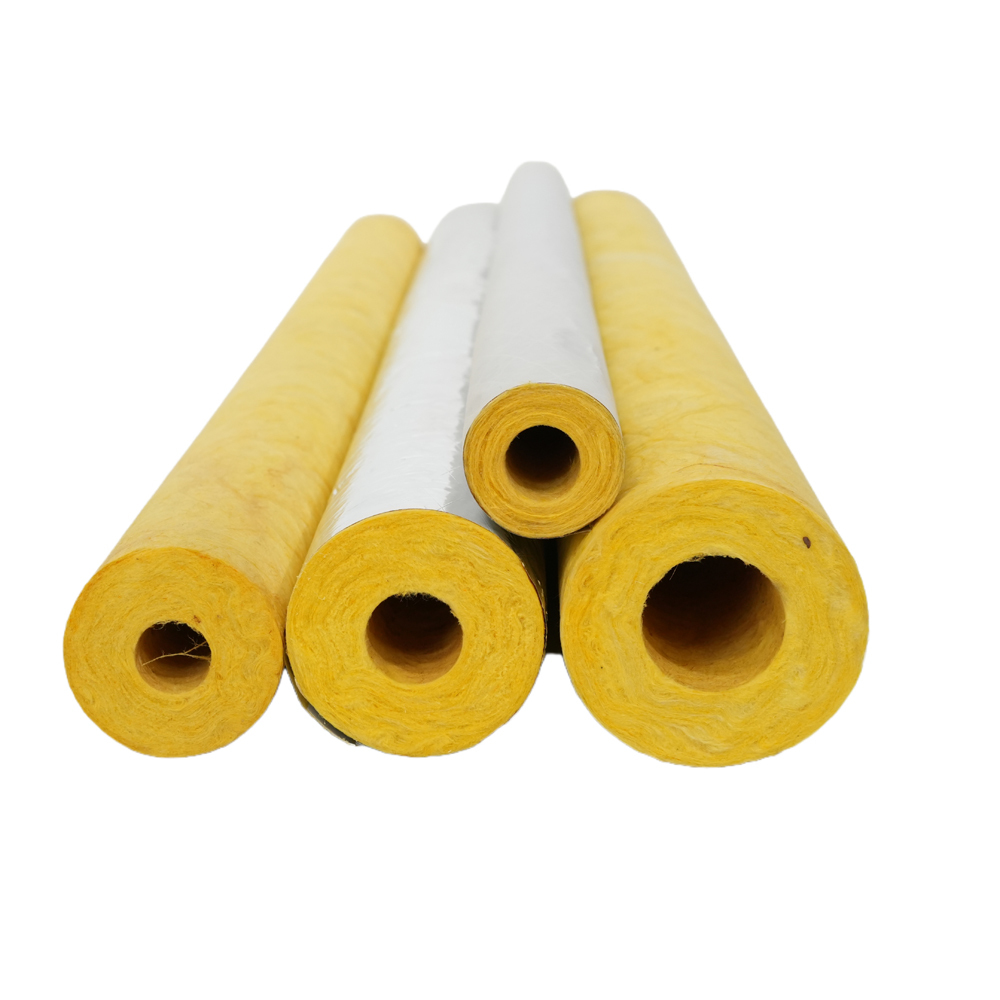

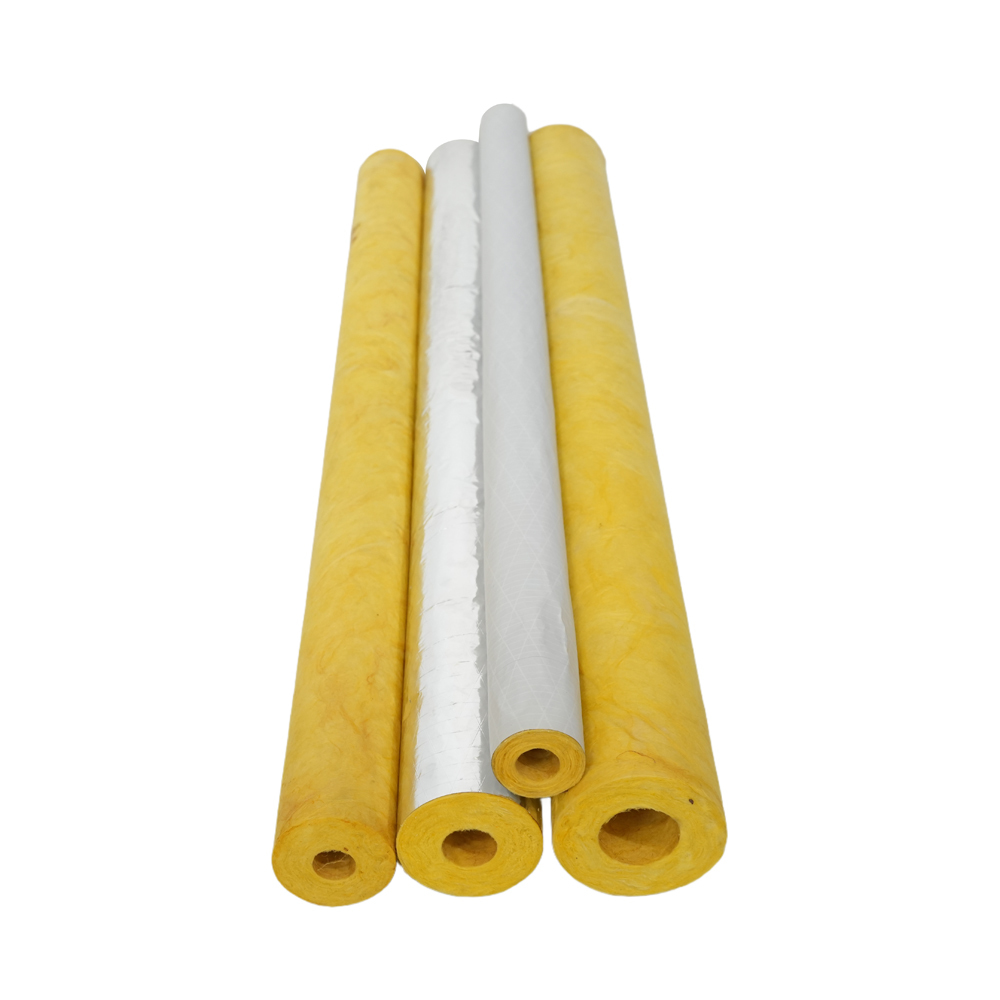

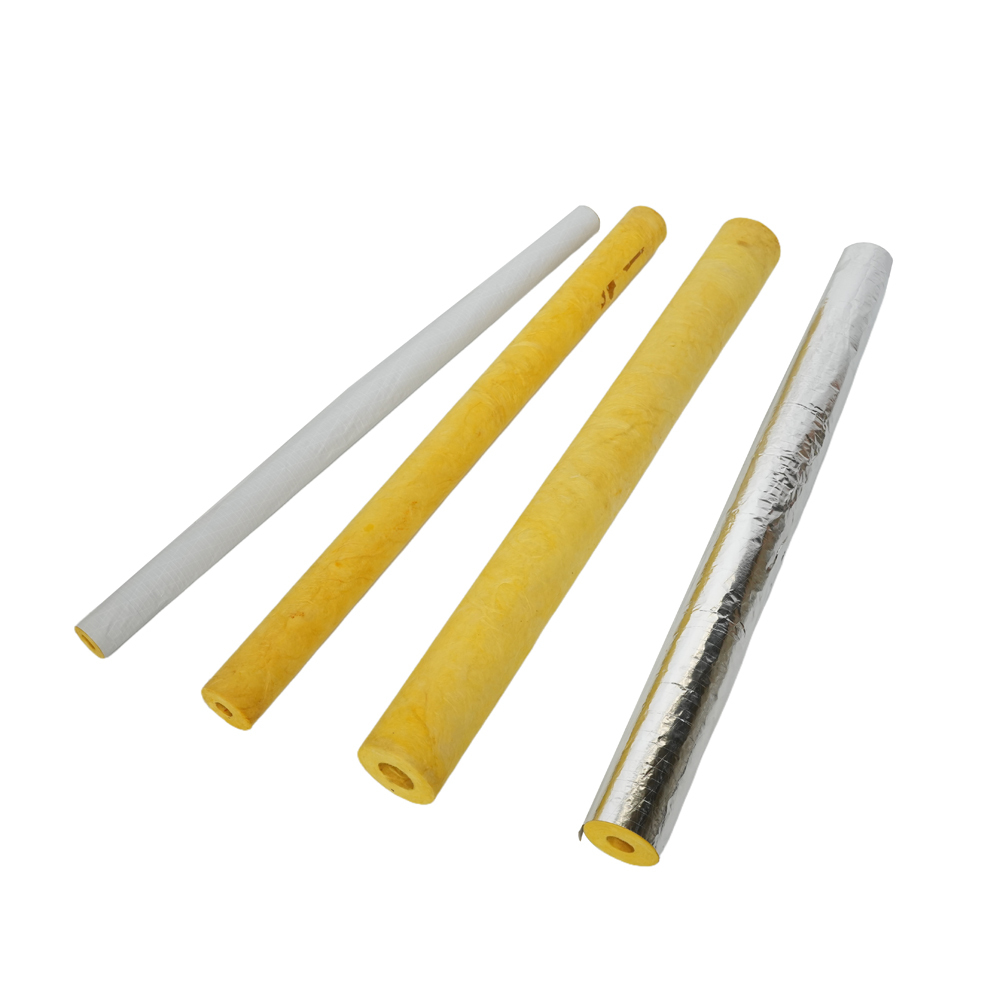

Optimize your building's climate control and acoustic comfort with our high-performance Glass Wool Pipe Sections. Specifically engineered for HVAC and ventilation systems, this insulation solution effectively minimizes heat loss or gain in air ducts, ensuring energy-efficient temperature management. Simultaneously, its superior sound-absorbing properties dampen noise from air movement and equipment, contributing to a quieter, more comfortable indoor environment. Easy to handle and install, it's the ideal choice for insulating complex ductwork in both commercial and residential buildings.
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) | ||||||
|---|---|---|---|---|---|---|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm | |
Air System Steaming and Water System High Temperature/ | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/ | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/ | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment | Relative Humidity | System Working Temperature | ||
|---|---|---|---|---|
2℃ | 7℃ | 13℃ | ||
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 | |
80% | 75 | 60 | 50 | |
85% | 100 | 90 | 75 | |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 | |
80% | 50 | 50 | 40 | |
85% | 80 | 75 | 60 | |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 65 | 50 | |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 | |
85% | 75 | 50 | 40 | |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|---|---|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Dual-Action Performance: Provides excellent thermal insulation to reduce energy costs and acoustic insulation to lower operational noise.
Wide Temperature Range: Stable performance in temperatures from -85°C to 454°C, suitable for various air handling scenarios.
Lightweight & Flexible: Simplifies installation around elbows, tees, and joints, reducing labor time and cost.
Non-Combustible: Enhances the overall fire safety of the ventilation system.
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
