| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| Số lượng đặt hàng tối thiểu: | 1 40 HC |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 15 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Cường độ nén: | ≥10 kPa | Độ dẫn nhiệt: | 0,035 W/m·K |
|---|---|---|---|
| Ứng dụng: | Cách nhiệt tòa nhà, cách nhiệt công nghiệp, hệ thống HVAC | Chống cháy: | Không cháy, loại A1 |
| Tỉ trọng: | 40-200 kg/m³ | Hấp thụ nước: | ít hơn 1% |
| Hệ số hấp thụ âm thanh: | 0,85 | Phạm vi độ dày: | 25mm đến 150mm |
| Độ thấm hơi: | Cao | Vật liệu: | Len khoáng |
| Tác động môi trường: | Có thể tái chế và thân thiện với môi trường | Kích thước: | Có sẵn ở dạng bảng, cuộn và tấm |
| Phương pháp cài đặt: | Máy đính kèm hoặc gắn kết bằng chất kết dính | Chịu nhiệt độ: | -270°C đến 700°C |
| Làm nổi bật: | vapor barrier pipe insulation,mineral wool pipe insulation,humid environment pipe insulation |
||

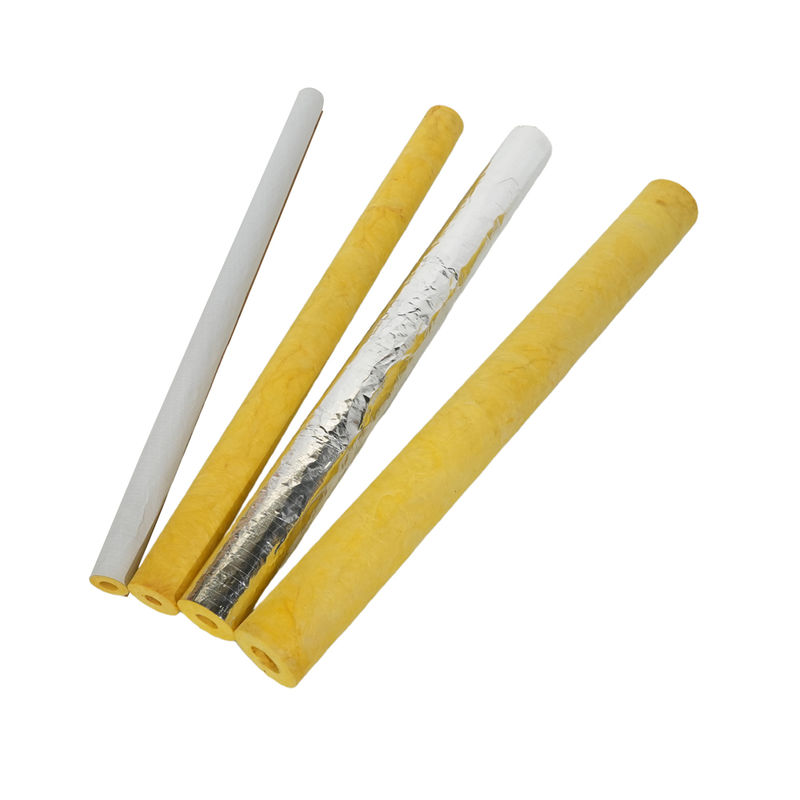

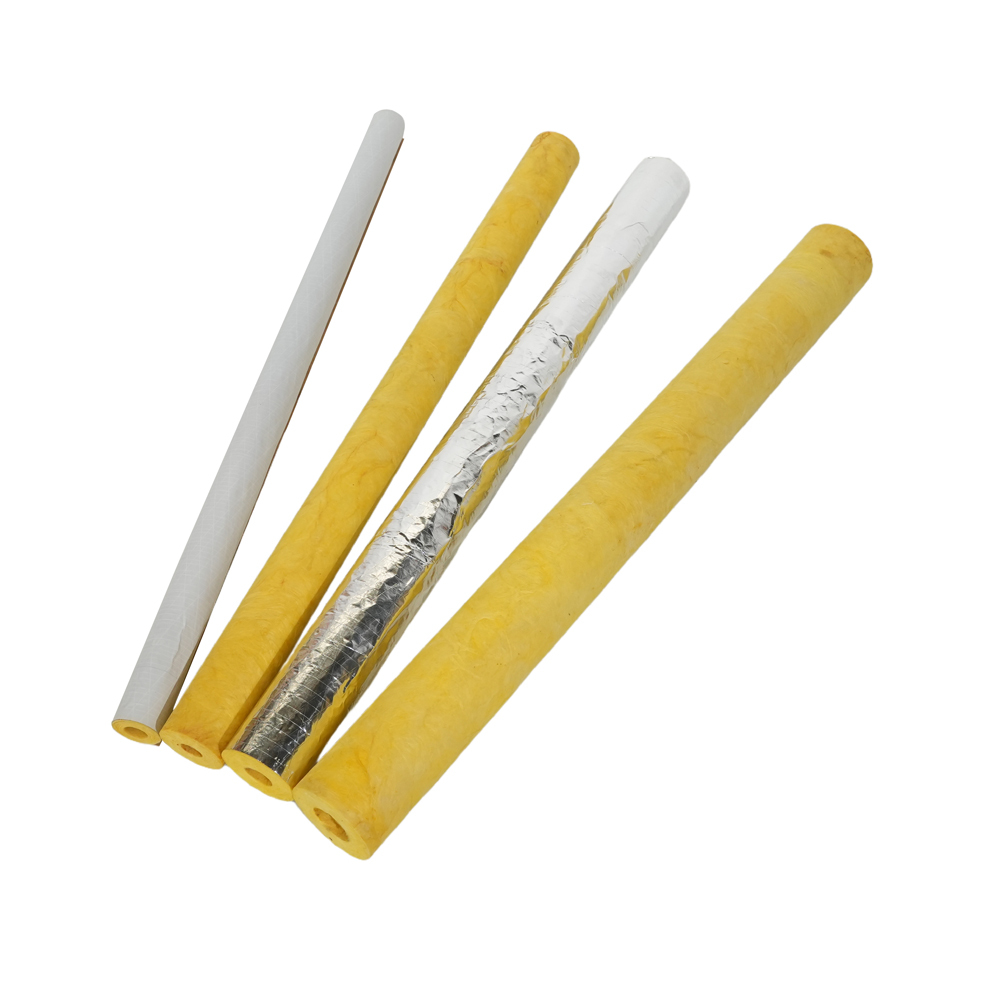

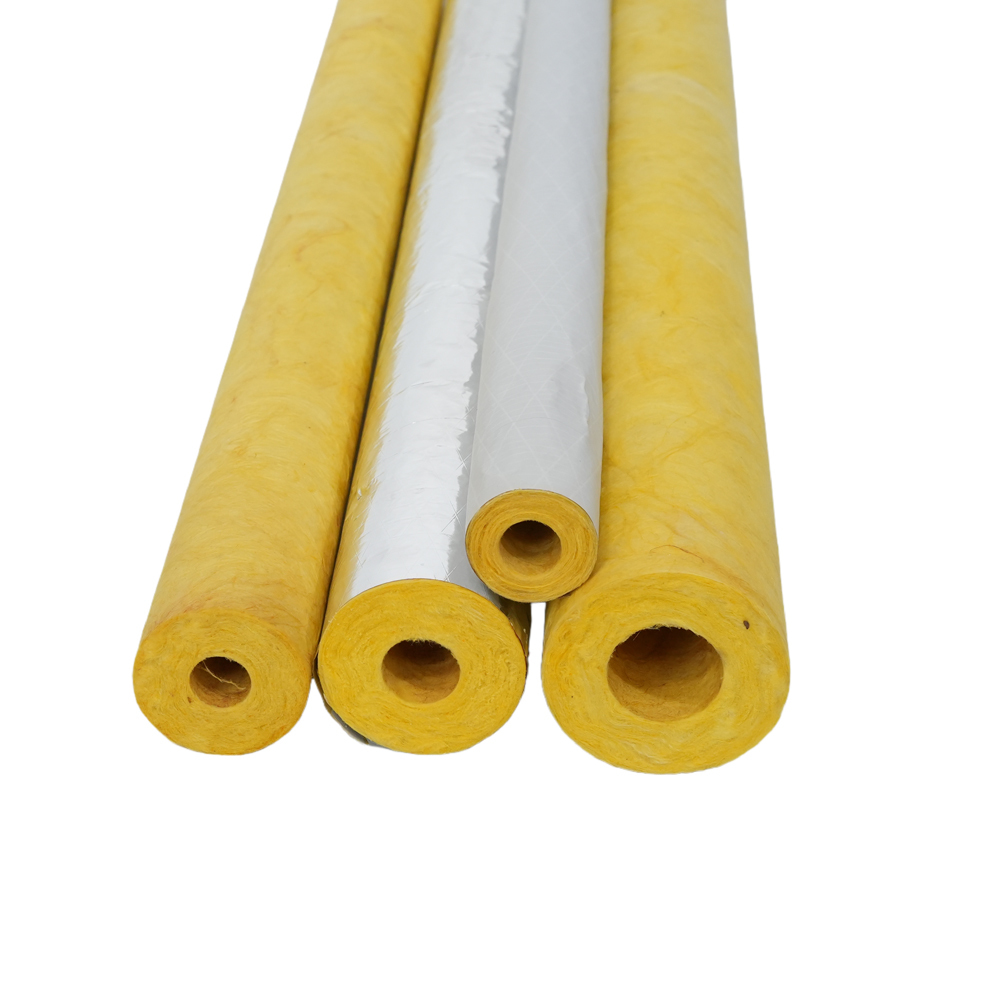

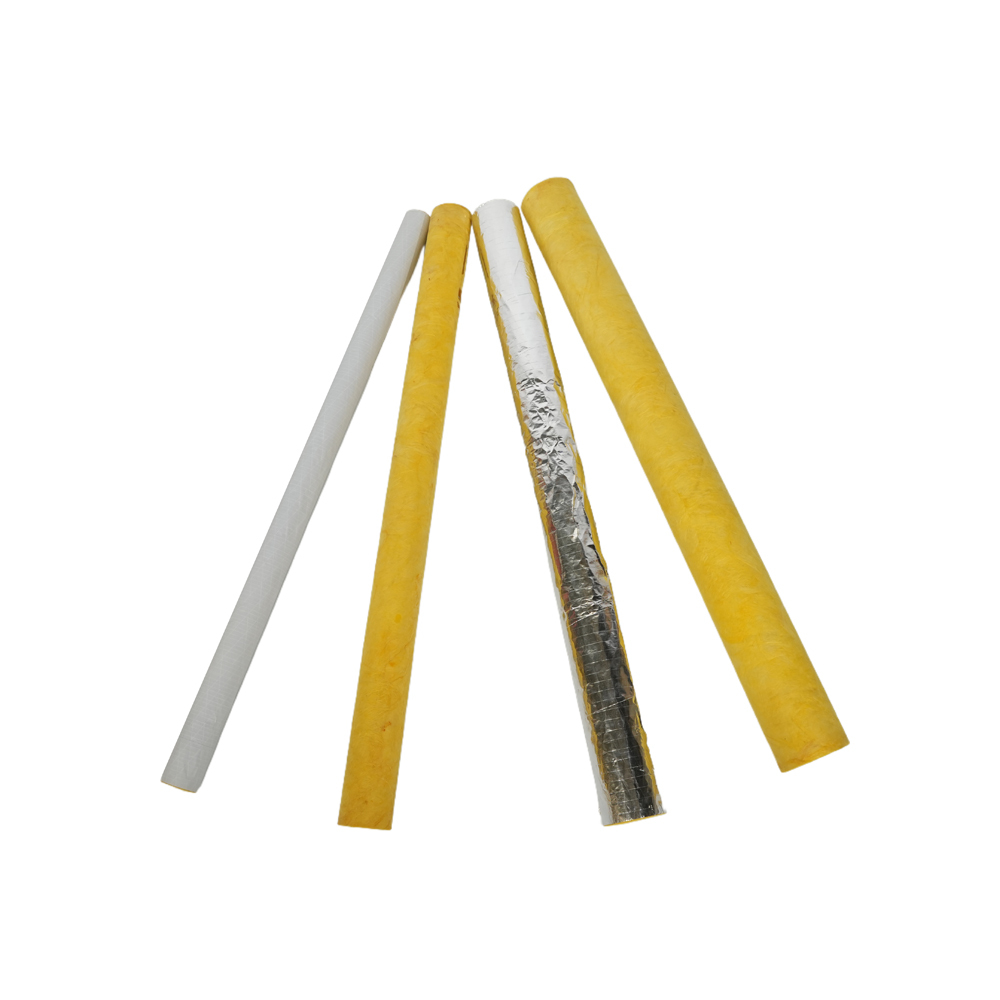

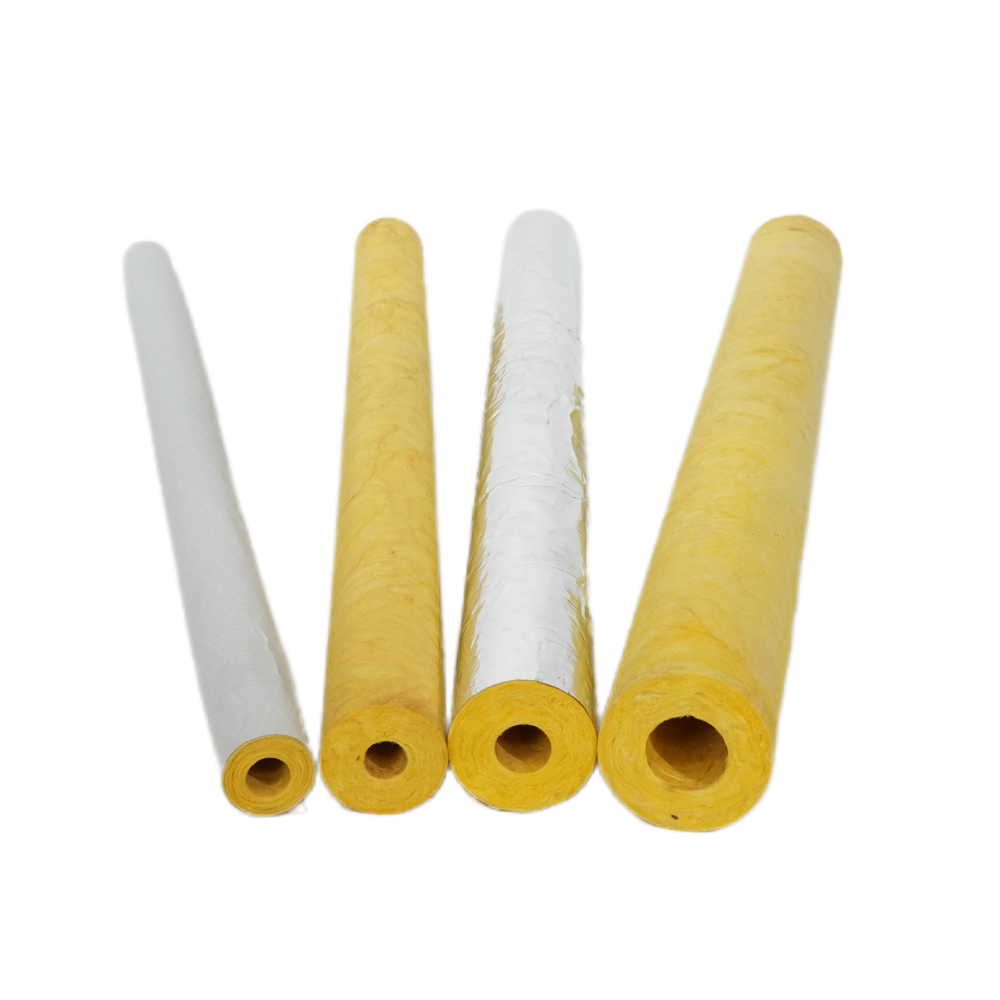

Product introduction of the glass wool pipe
Maximize insulation performance in challenging, humid conditions with our faced Glass Wool Pipe Sections. Available with Foil-Scrim-Kraft (FSK) or Alum Glass Cloth facings, these products include a built-in vapor retarder that protects the insulation from moisture ingress. This is critical for preventing a loss of thermal performance and fiber degradation, ensuring long-term reliability and efficiency in environments like swimming pools, food processing plants, and coastal areas.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
|
Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline(mm) |
||||||
|---|---|---|---|---|---|---|---|
|
Liquid Temperature Range℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
|
|
Air System Steaming and Water System High Temperature/ |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
|
Medium Temperature/ |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
|
low Temperature/ |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
|
low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
|
Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Equivalent Thickness of Surface Cooling Prevention
|
Environment |
Relative Humidity |
System Working Temperature |
||
|---|---|---|---|---|
|
2℃ |
7℃ |
13℃ |
||
|
38℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
40 |
30 |
30 |
|
|
80% |
75 |
60 |
50 |
|
|
85% |
100 |
90 |
75 |
|
|
32℃ |
50%-60% |
25 |
25 |
25 |
|
70% |
25 |
25 |
25 |
|
|
80% |
50 |
50 |
40 |
|
|
85% |
80 |
75 |
60 |
|
|
27℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
65 |
50 |
|
|
21℃ |
50%-70% |
25 |
25 |
25 |
|
80% |
50 |
40 |
30 |
|
|
85% |
75 |
50 |
40 |
|
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|---|---|---|---|
|
48-80 |
25-90 |
1000,1200 |
18-529 |
Product feature and application of the glass wool pipe
Integrated Vapor Barrier: FSK or Alum Glass Cloth facing blocks moisture migration, protecting the insulation core.
Enhanced Durability: The facing adds surface strength and resistance to tearing during and after installation.
Clean & Professional Finish: Provides a neat, cleanable surface that is both aesthetically pleasing and functional.
All-in-One Solution: Combines thermal insulation and vapor protection in a single, easy-to-install product.
Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process

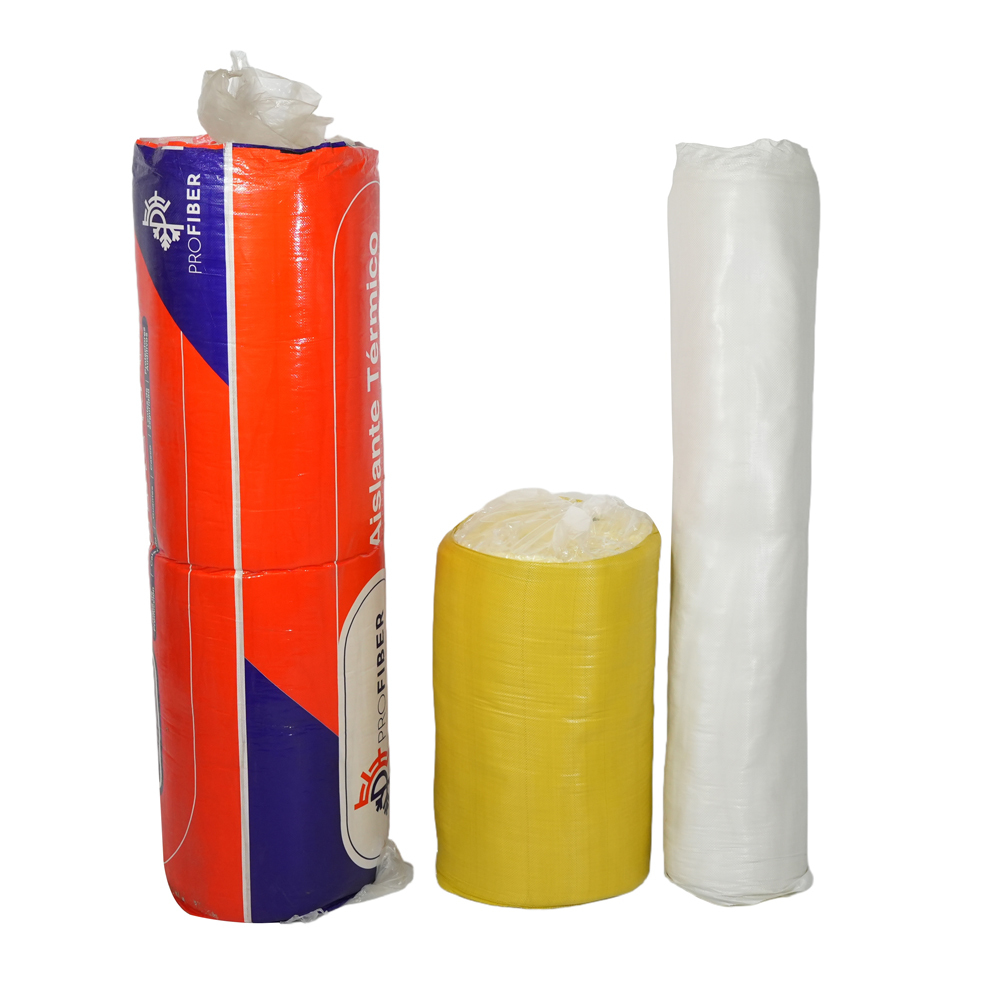

Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
