| Place of Origin: | Beijing, China |
|---|---|
| Hàng hiệu: | FANRYN |
| Model Number: | N yf |
| Minimum Order Quantity: | 300.0 Pieces |
| Supply Ability: | 200 Cubic Meter/Cubic Meters per Month |
| Bảo hành: | 1 năm | Dịch vụ sau bán hàng: | Hỗ trợ kỹ thuật trực tuyến |
|---|---|---|---|
| Khả năng giải quyết dự án: | thiết kế đồ họa | Ứng dụng: | Căn hộ, ống |
| Phong cách thiết kế: | Công nghiệp | Nguồn gốc: | Bắc Kinh, Trung Quốc |
| Hàng hiệu: | FANRYN | Số mô hình: | N yf |
| Vật liệu: | đá bazan | Tên sản phẩm: | Vật liệu cách nhiệt nhiệt không thấm nước |
| Màu sắc: | Màu vàng | Tên: | Len bằng kính âm thanh cách điện |
| Độ dày: | 25-100mm | Mật độ: | 80kg/m3 |
| Chiều dài: | 1000mm 1200mm | Gói: | hộp |
| Chức năng: | bảo quản nhiệt | ||
| Làm nổi bật: | Industrial Insulation Glass Wool Pipe,Hot Steam Insulation Glass Wool Pipe,Fireproof Pipeline Insulation Glass Wool Pipe |
||
|
Recommend Thickness List(mm) |
|||||||
|
Pipeline System Type |
The Thickness of glasswood pipe shell applied in different pipeline(mm) |
||||||
|
Liquid Temperature Range℃ |
Diameter of Branches Under 50mm |
Under 25mm |
32-50 |
64-100 |
125-150 |
Above 200mm |
|
|
Air System Steaming and Water System High Temperature/High Pressure System |
152-238 |
40 |
64 |
64 |
75 |
89 |
89 |
|
Medium Temperature/Medium Pressure System |
122-151 |
40 |
50 |
64 |
64 |
75 |
75 |
|
low Temperature/low Pressure System |
94-121 |
25 |
40 |
40 |
50 |
50 |
50 |
|
low Temperature System |
49-93 |
13 |
25 |
25 |
40 |
40 |
40 |
|
Steaming Condensator of Watering System |
Any Temperature |
25 |
25 |
40 |
50 |
50 |
50 |
Facing For glass wool blanket :
Specification:
|
Density(kg/m3) |
Thickness(mm) |
Length (mm) |
Diameter (mm) |
|
48-80 |
25-90 |
1000,1200 |
18-529 |

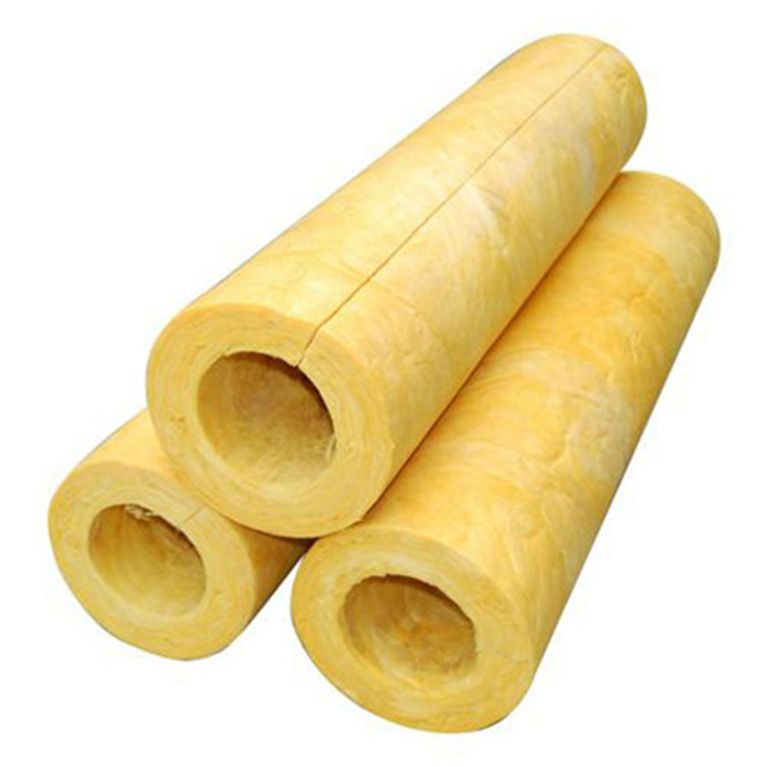

Product introduction of the Glass Wool Pipe

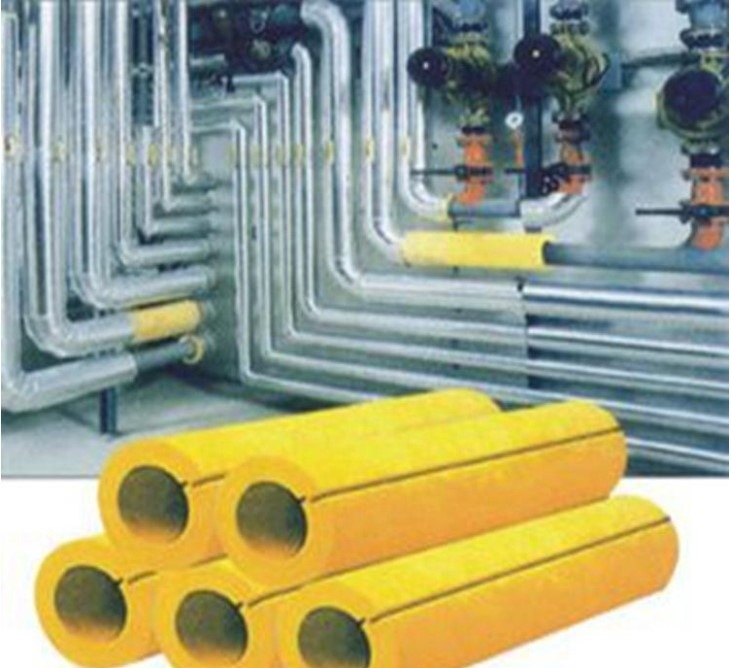

Glass wool Pipe Section is a kind of economical insulating material which is light and easy to install. This material has excellent performance of heat and sound insulation under both extremely high and low temperature conditions(.-85 degree to 454 degree) Therefore, glass wool section pipes are widely used on heat and sound insulation of ventilating ducts, industrial & civil heat supplying and all kinds of heating, cooling pipelines.
If you are interested in our products,please { click here }to see all the products
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
If you have any other questions,please click here to "send an inquiry".
