| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | Fanryn |
| Số lượng đặt hàng tối thiểu: | Một conrainer 40ft |
| chi tiết đóng gói: | Túi nhựa hoặc hộp carton |
| Thời gian giao hàng: | 10-15 ngày làm việc |
| Vật liệu: | sợi thủy tinh | Sử dụng: | Trần nhà |
|---|---|---|---|
| Màu sắc: | màu trắng hoặc đen | Bề mặt: | các loại mặt |
| Làm nổi bật: | 24mm Fiberglass Wool Board,Insulation Fiberglass Ceiling Tiles,Painting Laminated Fiberglass Ceiling Tiles |
||

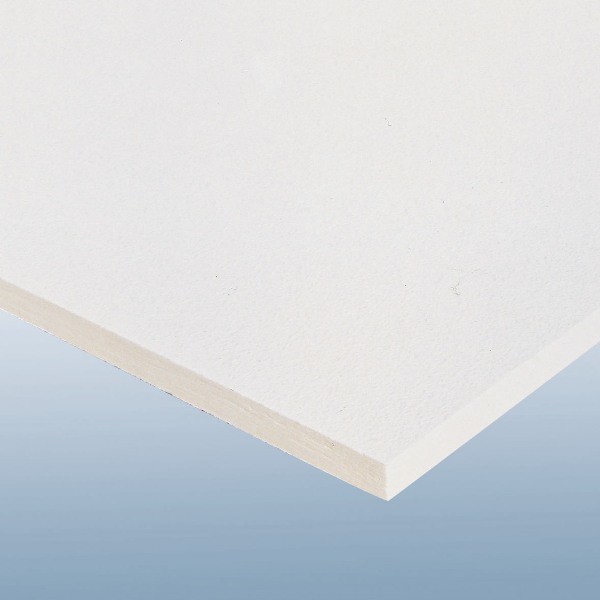

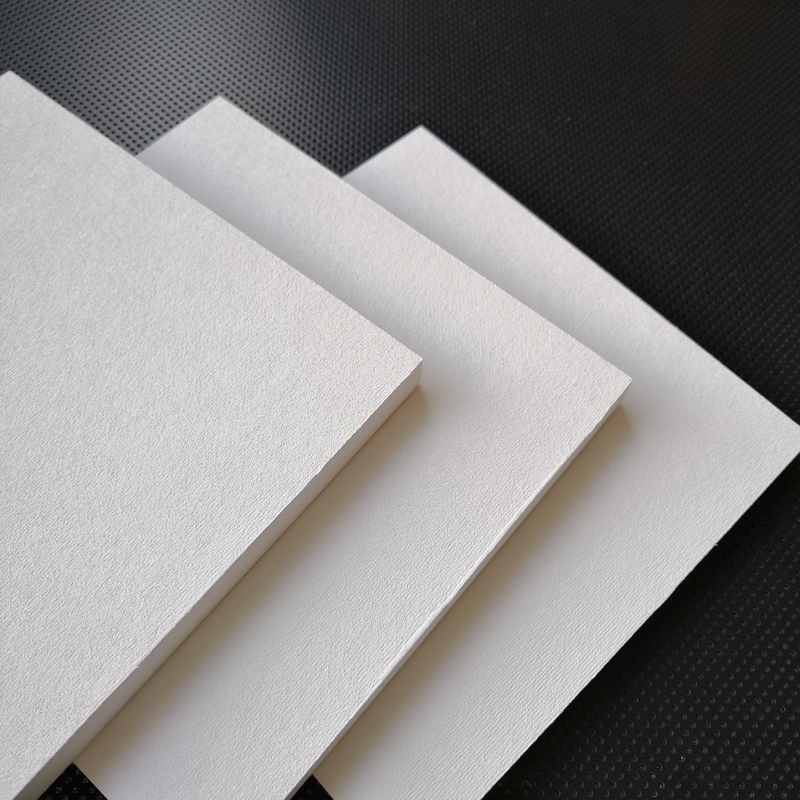

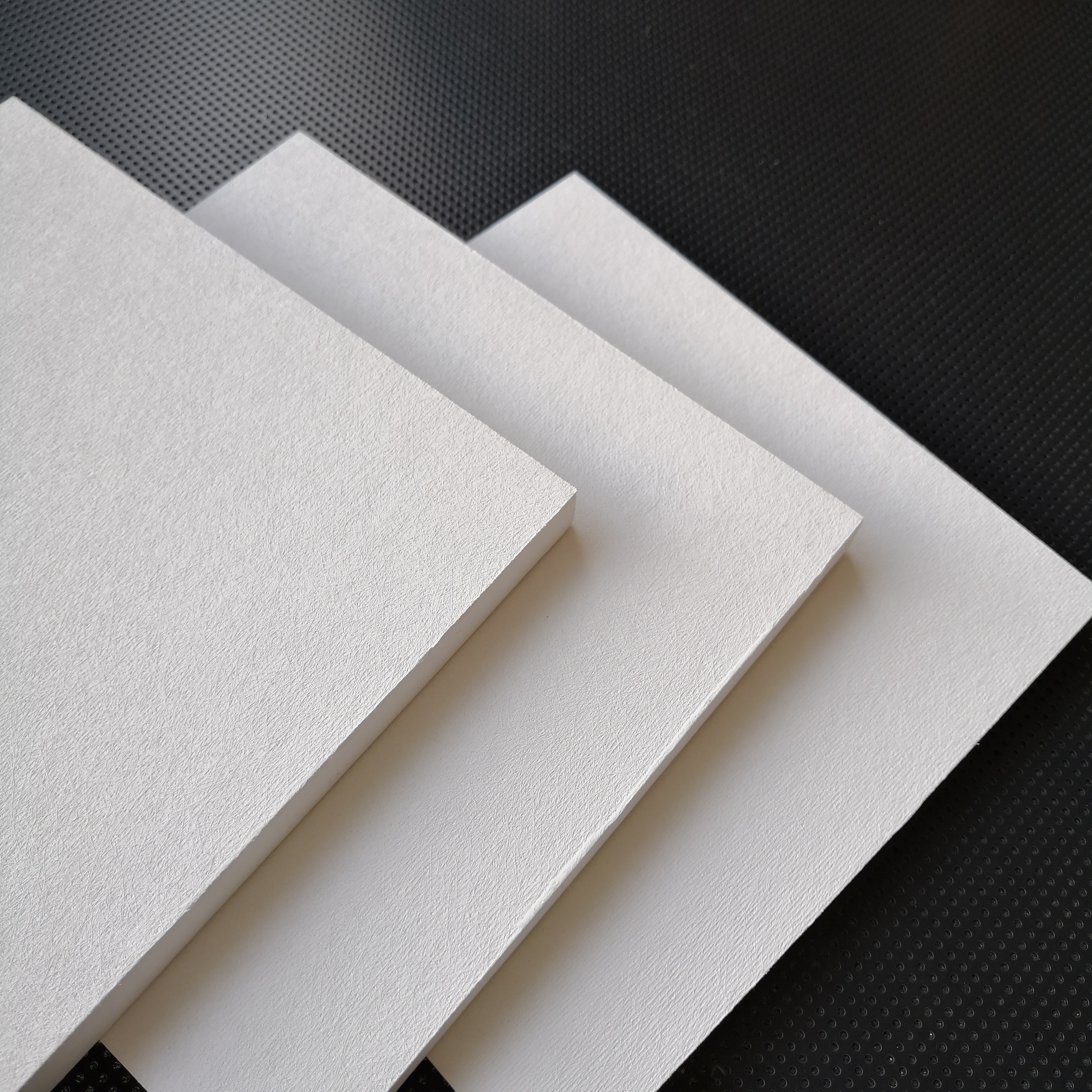

Glass wool ceiling tiles
FANRYN fiberglass ceiling board is manufactured from high density fiberglass wool. The visible face has a decorative
fiberglass tissue and the back of the tile is covered with normal tissue. The four edges are sealed and square. The tiles
will be parallel to grids system after installation.
Technical Data:
| Material | Fiberglass wool board |
| Density | 90-130kg/m3 |
| Face | Painting laminated with decorative fiberglass tissue or PVC facing |
| Color | White, black and others to order |
| Fire-resistant | Class A |
| Thermal-resistant | ≥0.5 (m2·k/w) |
| NRC | 0.9-1.0 |
| Humidity | Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating |
| Moisture rate | ≤1%(JC/T670-2005) |
| Environmental impact | Tiles and packing are fully recyclable |
| safety |
Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3 |
Installation:
◆use exposed grids, grids width:15mm or 24mm
◆tiles are easy to trim and install
◆both inches and centimeters grids are available
Applications:
classrooms, offices, shopping center, etc.
Main Advantages:
◆non-combustible ◆no sagging, wrapping or delaminating
◆green building material ◆excellent sound absorption
Facing on glass wool board:
Packing information:
| SIZE | CARTON/40HQ | PIECES/CARTON | M2/40HQ |
| 600*600*15MM | 532 | 20 | 3830.4 |
| 600*1200*15MM | 266 | 20 | 3830.4 |
| 600*600*20MM | 532 | 15 | 2872.8 |
| 600*1200*20MM | 266 | 15 | 2872.8 |
| 600*600*25MM | 532 | 12 | 2298.24 |
| 600*1200*25MM | 266 | 12 | 2298.24 |
