| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Chiều rộng: | 1,2m | Vật liệu: | Lá nhôm |
|---|---|---|---|
| Chất chống cháy: | Lớp A. | Chiều dài: | 60m |
| Ứng dụng: | Cách nhiệt và hàng rào hơi cho ống, ống và thiết bị HVAC | Tốc độ truyền hơi nước: | 0,02g/m2 · 24h |
| Điện trở nhiệt độ: | -30 đến 120 | Sức mạnh vỏ: | ≥ 6n/25 mm |
| Độ bền kéo: | ≥ 40N/25 mm | Kết cấu: | Giấy nhôm/chất kết dính/giấy kraft |
| độ phát xạ: | 0,03 | Độ dày: | 0,03-0,08mm |
| Phản xạ: | 97% | ||
| Làm nổi bật: | fire retardant aluminum glass cloth foil,HVAC duct wrap vapor barrier,Class 1 rated foil facing |
||

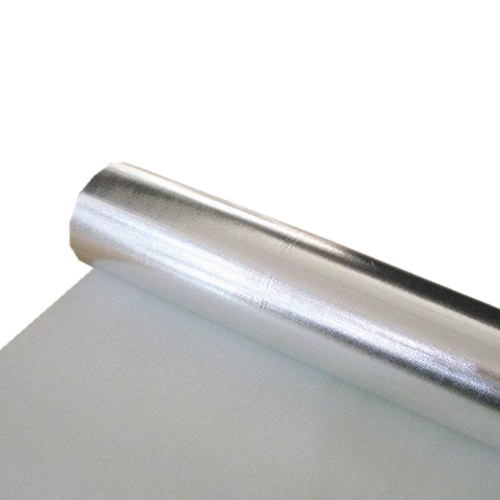

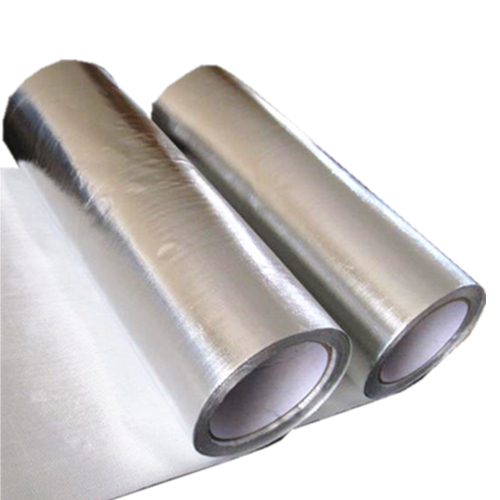

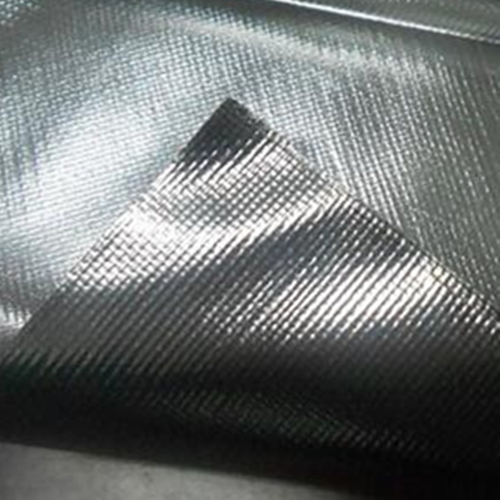

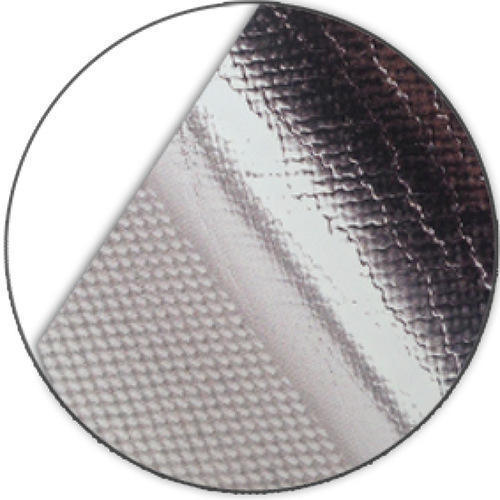

Product Introduction Of The ALUMINUM-GLASS CLOTH FOIL FACING
The FANRYN FG-R701 is a premium fire-retardant composite material engineered for critical applications in Heating, Ventilation, and Air Conditioning (HVAC) systems. Constructed with a 7-micron aluminum foil laminated to a 110 gsm fiberglass cloth using a flame-retardant adhesive, it effectively blocks vapor transmission and reflects radiant heat. Its Class 1 Fire Rating ensures it meets stringent safety standards, making it an indispensable solution for commercial buildings, hospitals, and schools where fire safety is paramount. This facing is also perfectly suited for laminating to duct insulation boards.
Product Details Of The ALUMINUM-GLASS CLOTH FOIL FACING
Product Parameter Of The ALUMINUM-GLASS CLOTH FOIL FACING
|
Product |
Construction |
|
FG-701 |
Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R701 |
Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
|
FG-R1801 |
Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
TYPICAL PHYSICAL PROPERTIES
|
Product |
Basic weight (g/m²) |
Tensile MD (n/25mm) |
Tensile XD (n/25mm) |
Bursting Strength(n) |
WVTR (ng/N.s) |
Reflectivity of Foil Surface |
Temperature Resistance (℃) |
Fire Rating |
|
FG-701 |
160 |
310 |
190 |
125 |
5.75 |
95% |
-29~ +66 |
----- |
|
FG-R701 |
130 |
260 |
180 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
|
FG-R1801 |
170 |
300 |
160 |
125 |
5.75 |
95% |
-29~ +66 |
Class 1 |
Product Feature And Application Of The ALUMINUM-GLASS CLOTH FOIL FACING
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION:
Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
