| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| chi tiết đóng gói: | Túi nhựa |
| Thời gian giao hàng: | 10 ngày làm việc |
| Điều khoản thanh toán: | T/t |
| Cường độ nén: | 10-100 KPa | Vật liệu: | Len khoáng |
|---|---|---|---|
| Kháng hóa chất: | Chống lại hầu hết các hóa chất | Kháng độ ẩm: | Chống ẩm |
| Kháng lửa: | Lớp A1 | Độ dẫn nhiệt: | 0,035-0,04 w/mk |
| Hình thức: | sợi | Ứng dụng: | Xây dựng cách nhiệt, cách nhiệt công nghiệp |
| Phạm vi nhiệt độ: | -200°C đến 650°C | Loại cách nhiệt: | Cách nhiệt nhiệt |
| Tỉ trọng: | 10-100 kg/m3 | Hiệu suất âm thanh: | Hấp thụ âm thanh |
| Hấp thụ nước: | ít hơn 1% | Tác động môi trường: | Thân thiện với môi trường |
| Làm nổi bật: | aluminum fiberglass foil facing,high strength insulation jacketing,pipeline equipment insulation foil |
||

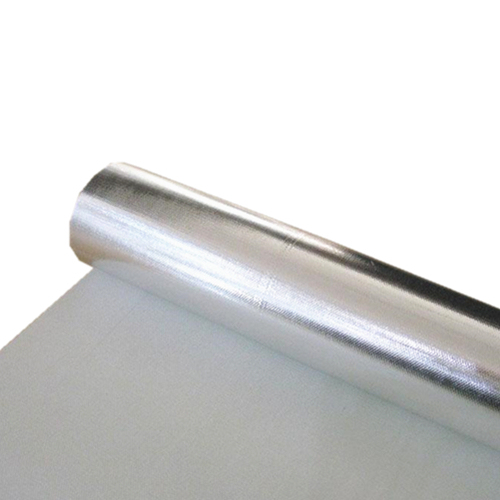

Designed for demanding industrial environments, the FANRYN FG-701 is a robust jacketing material that provides durable protection for pipelines, valves, and large equipment. The combination of a 7-micron aluminum foil and a heavy-duty 110 gsm fiberglass cloth, bonded with polyethylene, creates a tough, tear-resistant barrier against moisture, abrasion, and casual physical impact. Its high tensile strength ensures it remains intact during installation and throughout its long service life, safeguarding the underlying insulation in chemical plants, refineries, and power generation facilities.
| Product | Construction |
|---|---|
| FG-701 | Foil: 7 micron / Polyethylene / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R701 | Foil: 7 micron / Flame retardant adhesive / 110 gsm fiberglass cloth ( 12x12 threads/cm) |
| FG-R1801 | Foil: 18 micron / Flame retardant adhesive / 95 gsm fiberglass cloth ( 8x8 threads/cm) |
Fiberglass cloth standard weight is 95gsm ~110 gsm
Typical width: 1.0m,1.1m,1.2m,1.25m,1.3m
Length: 100m,300m,1000m
Inner core: 76mm
| Product | Basic weight (g/m²) | Tensile MD (n/25mm) | Tensile XD (n/25mm) | Bursting Strength(n) | WVTR (ng/N.s) | Reflectivity of Foil Surface | Temperature Resistance (℃) | Fire Rating |
|---|---|---|---|---|---|---|---|---|
| FG-701 | 160 | 310 | 190 | 125 | 5.75 | 95% | -29~ +66 | ----- |
| FG-R701 | 130 | 260 | 180 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
| FG-R1801 | 170 | 300 | 160 | 125 | 5.75 | 95% | -29~ +66 | Class 1 |
Heavy-Duty Protection: The 18-micron foil offers superior resistance to heat and physical damage compared to standard foils.
Certified Fire Safety: Class 1 Fire Rating ensures the material contributes to a safer working environment.
Moisture & Vapor Proof: Creates an impermeable shield that protects valuable machinery from corrosive moisture and vapor.
High-Temperature Stability: Maintains integrity and performance in temperatures up to 66°C.
Tear-Resistant Backing: The fiberglass cloth provides a strong, scuff-resistant surface that is easy to work with.
APPLICATION: Aluminum fiberglass foil suit for HVAC duct wrap, also used for on-line lamination with insulation materials of glass wool, rock wool and mineral wool. The typical benefit is high tensile strength, excellent tear resistance.
