| Nguồn gốc: | Trung Quốc |
|---|---|
| Hàng hiệu: | FANRYN |
| Chứng nhận: | CE, ASTM E84, EN 13501 12018 |
| Số mô hình: | Tấm bông thủy tinh có mặt bọc giấy nhôm |
| Số lượng đặt hàng tối thiểu: | 1 * 40HQ cho mỗi thông số kỹ thuật |
| Giá bán: | 0.2-5$/m2 |
| chi tiết đóng gói: | Túi nhựa chân không + túi dệt |
| Thời gian giao hàng: | 7-10 ngày |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1*40HQ 7 ngày |
| Dẫn nhiệt: | 0,031-0,042 W/m·K | Tỉ trọng: | 24-96 kg/m³ |
|---|---|---|---|
| tác động môi trường: | Có thể tái chế, thân thiện với môi trường | chống cháy: | Không cháy, loại A1 |
| hệ số hấp thụ âm thanh: | 1.03 Phương pháp hồi âm sản phẩm 24kg/m3 2000Hz | nướcSự hấp thụ: | <1% |
| Tên sản phẩm: | Bông thủy tinh cách nhiệt | Ứng dụng: | Cách nhiệt cho tòa nhà, thiết bị công nghiệp |
| độ dày: | 25-100 mm | Vật liệu: | Len thủy tinh |
| Màu sắc: | vàng, nâu, đỏ | Nhiệt độCứng kháng: | -270°C đến 350°C |
| Kích thước: | Khác nhau (ví dụ: bảng 600x1200 mm) | ||
| Làm nổi bật: | yellow glass wool insulation board,sound absorption fiberglass panel,fire-resistant unfaced glass wool |
||
Products Description

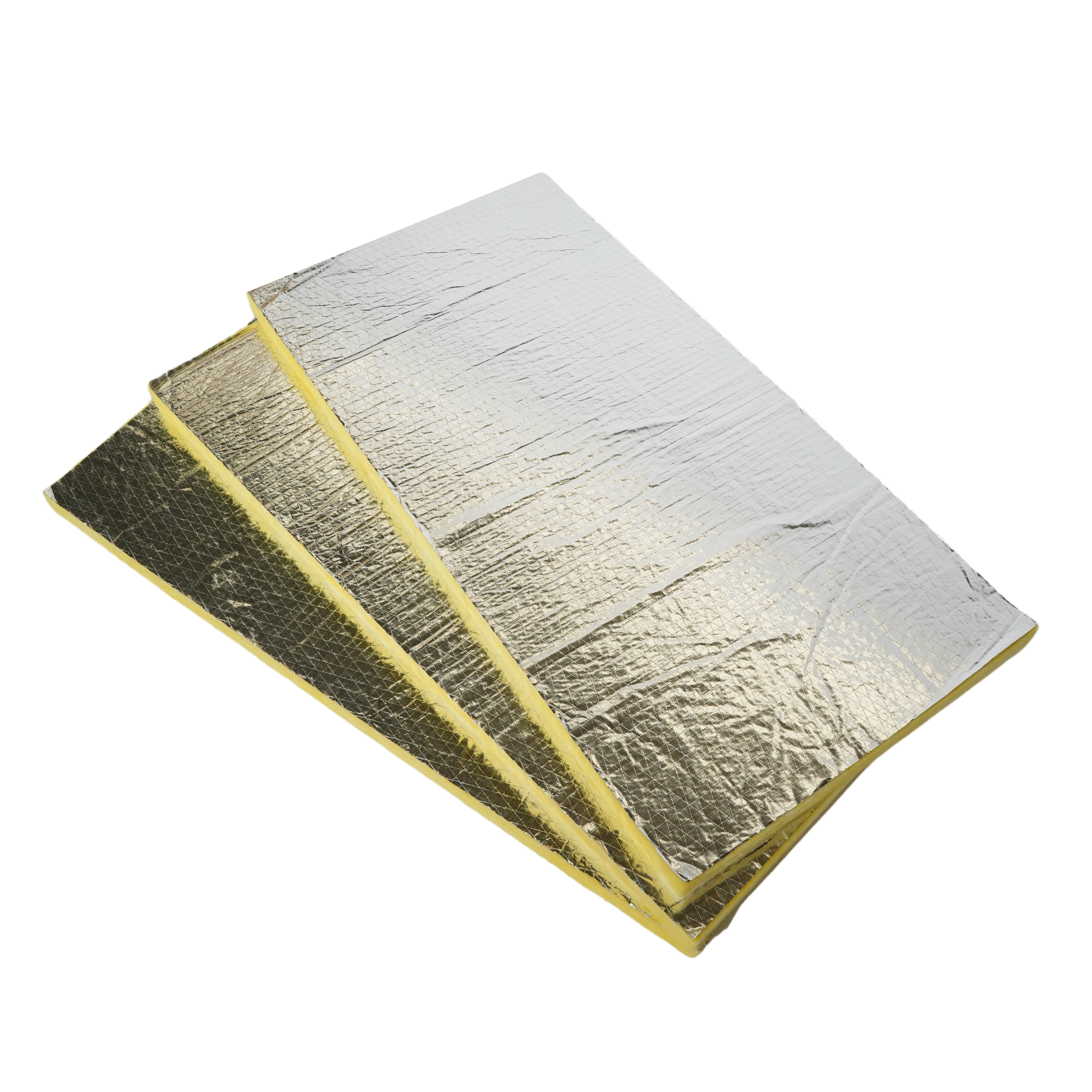

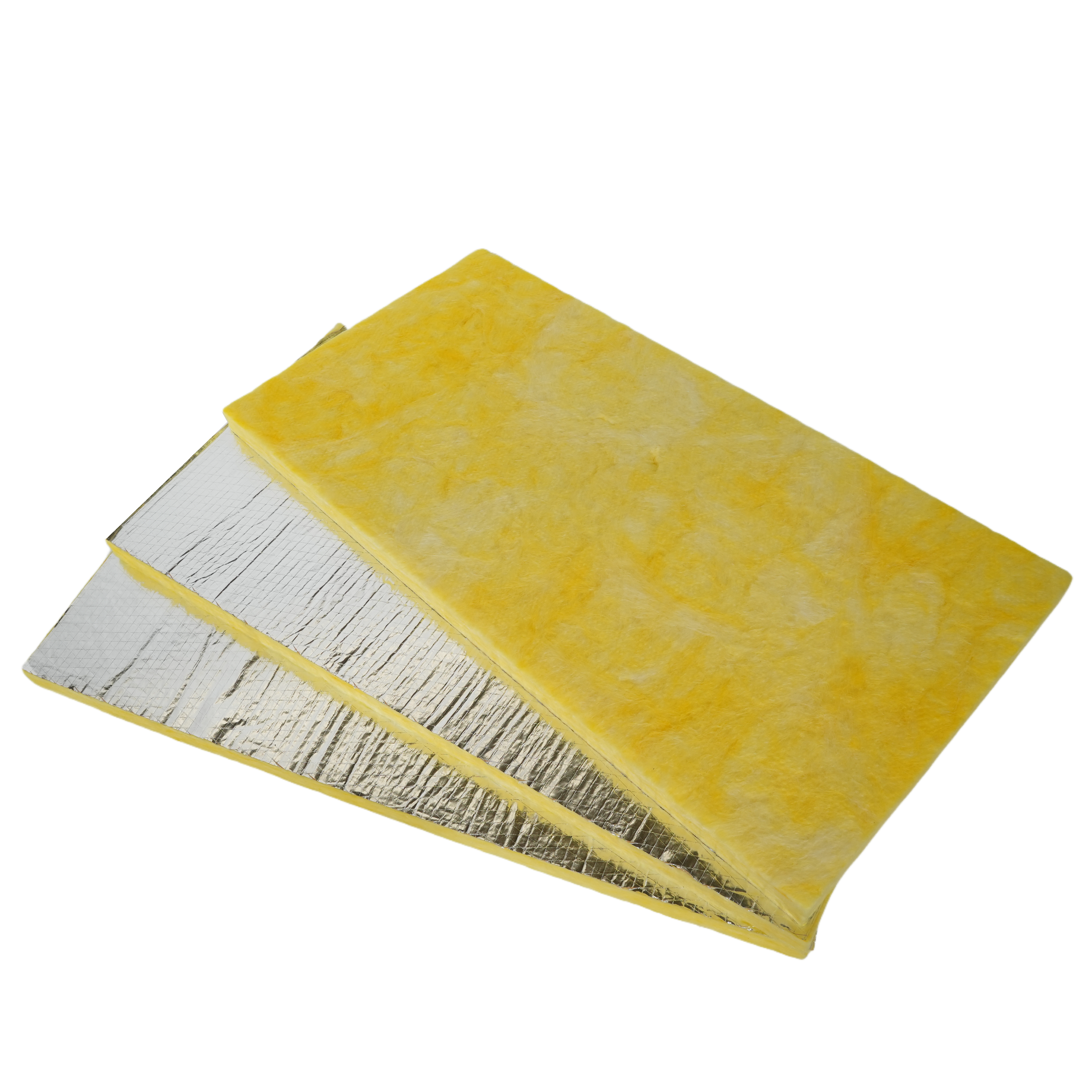

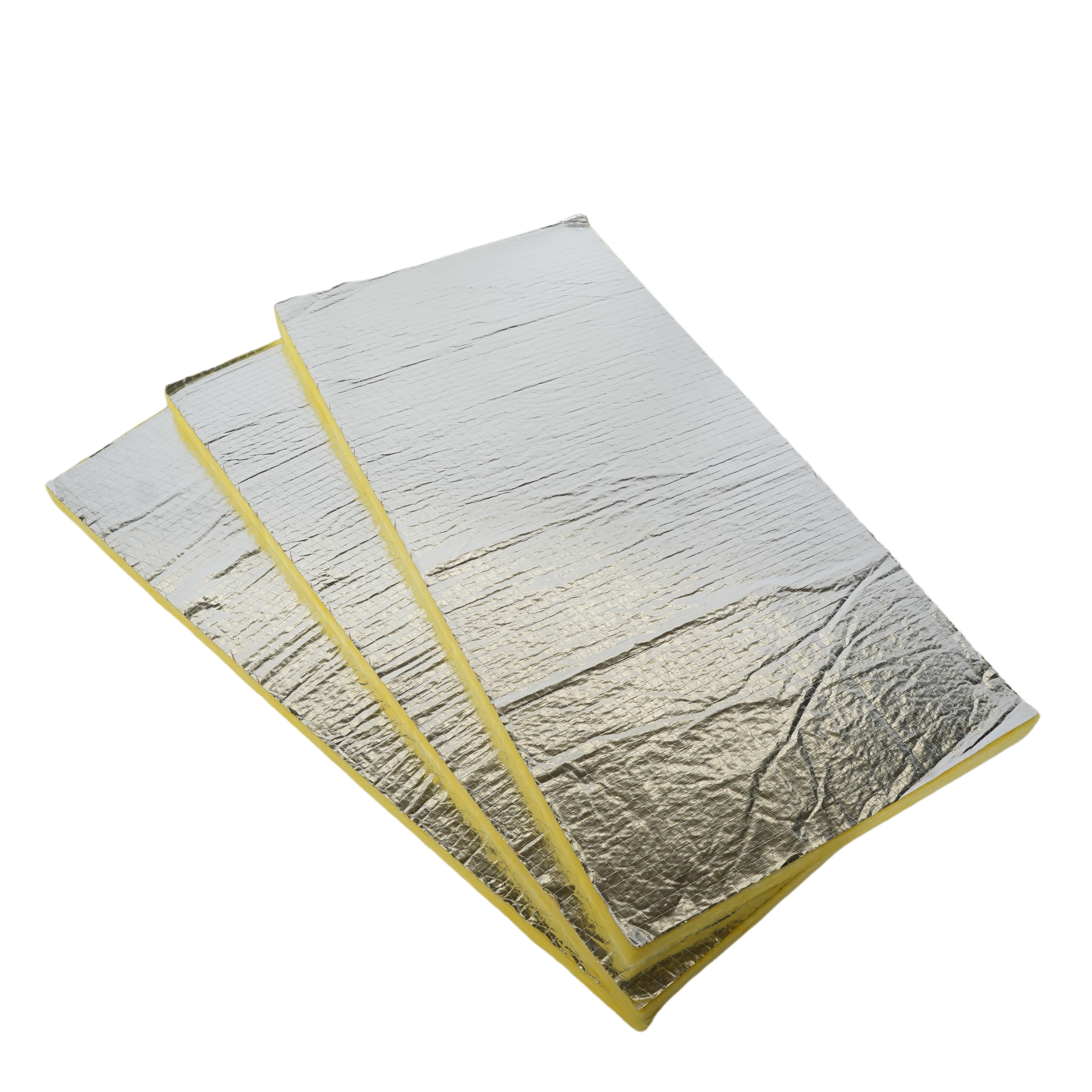

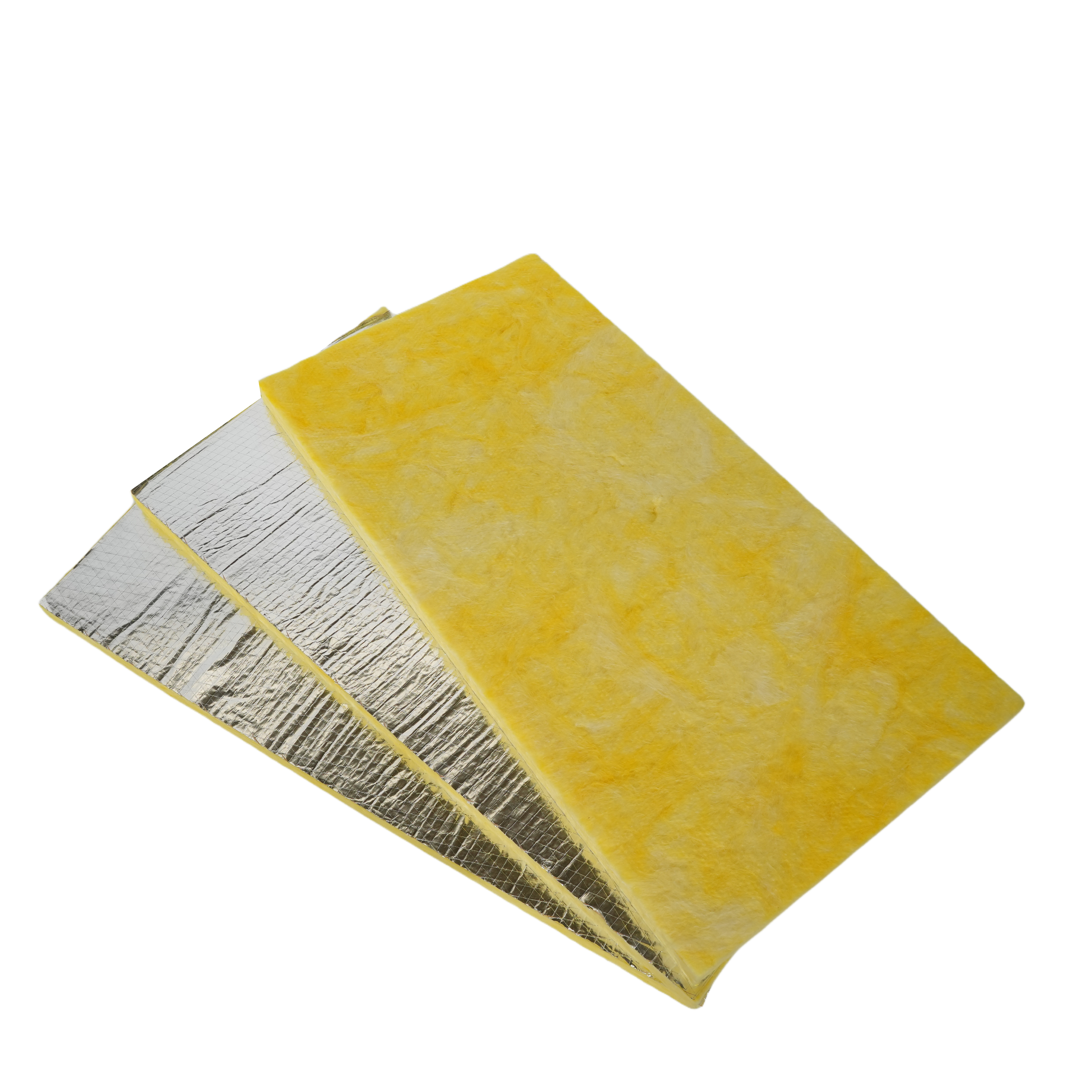

Aluminum foil-faced glass wool boards combine the inherent benefits of glass wool—non-combustibility, excellent thermal and acoustic insulation, and no toxic emissions when exposed to fire—with the added advantages of an integrated vapor barrier and enhanced radiant heat reflection. This makes them a superior, all-in-one, and environmentally responsible insulation solution for demanding building applications.
Product feature of the glass wool board with aluminum foil facing
Quick Recovery & Consistent Form: Regains full intended thickness within 24 hours after unpacking, ensuring uniform installation and reliable long-term dimensional stability.
Superior Workability: Composed of soft, long fibers that minimize dust and fiber fly during handling, creating a healthier and cleaner installation environment.
Enhanced Performance Layer: The foil facing reflects radiant heat, controls moisture diffusion, and provides a smooth, ready-to-cover surface—making it a complete insulation system in one product.
Product Specifications
|
Item |
Unit |
Index |
Standard |
|
Density |
kg/m3 |
10-100 |
GB/T 5480.3-1985 |
|
Average fiber dia. |
µm |
5.5 |
GB/T 5480.4-1985 |
|
Water content |
% |
≤1 |
GB/T 3007-1982 |
|
Grade of combustibility |
|
Non-combustible Grade A |
GB 8624-1997 |
|
Reshrinking temp |
℃ |
≥250 |
GB/T 11835-1998 |
|
Thermal conductibility |
w/m.k |
0.038-0.06 |
GB/T 10294-1988 |
|
Hydrophobicity |
% |
≥98.2 |
GB/T 10299-1988 |
|
Moisture rate |
% |
≤5 |
GB/T 16401-1986 |
|
Sound absorption coefficient |
|
1.03 product reverberation method 24kg/m32000HZ |
GBJ 47-83 |
|
Slag inclusion content |
% |
≤0.3 |
|
Product size of the glass wool board
|
Density(kg/m3) |
Thickness(m) |
Length (m) |
Width (m) |
Pcs/packing |
|
24-96 |
0.025-0.1 |
0.6-1.25 |
0.6 |
5-18 |
|
24-96 |
0.025-0.1 |
0.6-2.4 |
1.1-1.25 |
5-18 |
Product application of the glass wool board
Wall Insulation
Steel Structure Insulation
Interior Partition Walls
Railway Carriage Interiors
Acoustic Absorption & Soundproofing
Production Facing For glass wool board
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue
Production packing of the glass wool board
The normal packing is plastic bag
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: what is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool board?
A4: Special size can be made according customer’s requirement.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
